Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | MS |
| Certification: | RoHS |
| Model Number: | MS-24-NZ-003 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 100 PCS |
| Price: | USD$ 0.3 / PCS - USD$ 0.35 / PCS |
| Packaging Details: | 100 PCS / BAG |
| Delivery Time: | 5-8 days |
| Payment Terms: | D/P |
| Supply Ability: | 10000 PCS |
|
Detail Information |
|||
| Product Name: | Internal 2.4GHz WIFI PIFA Antenna | Frequency: | 2400-2500 MHz |
|---|---|---|---|
| Gain: | 3 DBi | VSWR: | < 2.0 |
| Impedance: | 50 Ω | Polarization: | Linear |
| Radiation Pattern: | Omni-Directional | Max Input Power: | 1 W |
| Dimensions: | 31*29 Mm | Weight: | 1.2 G |
| Cable Type: | RG 1.13 / RG 1.37 | Connector: | IPEX (U.FL) |
| Adhesive: | 3M 467 | Mounting: | Embedded |
| High Light: | PIFA WIFI Bluetooth Antenna,Embedded WIFI Bluetooth Antenna,2.4GHz Internal Bluetooth Antenna |
||
Product Description
1. Product Name

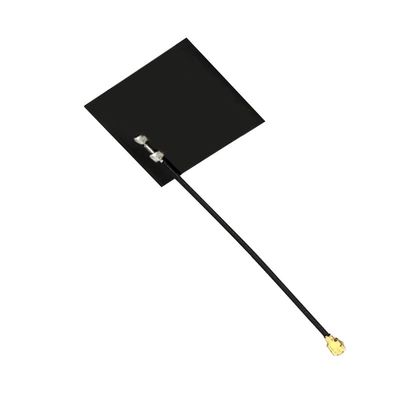

Internal 2dBi Embedded FPC 2.4GHz WIFI PIFA Antenna
2. Description
--2.1 Applications:
2.4GHz WIFI
Bluetooth,Zigbee, BLE
ISM 2.4GHz
Metering, Security
M2M Applications
--2.2 Features:
Low Profile Antenna
High performance
PIFA Type
3dBi Gain
IPEX(U.FL) Connector
3. Introduction
This 2.4GHz PIFA Antenna works on Wi-Fi, ZigBee, Bluetooth and ISM band at 2.4GHz. This antenna has been designed as a general solution to cover the current market applications, with easy installation through a cable connection. The antenna has been designed to work on different plastics material and thickness. We have selected a piece of ABS plastic with 2mm of thickness as a baseline for testing.
4. Specs
Electrical Properties
| 1.1 | Frequency | 2.4 GHz ~ 2.5 GHz |
| 1.2 | Gain (peak) | 3 dBi |
| 1.3 | V.S.W.R | 2.0 MAX |
| 1.4 | Return Loss | -10dB Maximum |
| 1.5 | Radiation | Omni-directional |
| 1.6 | Polarization | Linear Vertical |
| 1.7 | Power Handling | 1W |
Mechanical Properties
| 2.1 | Cable | RG1.13 /RG1.37 |
| 2.2 | Antenna Cover | ABS |
| 2.3 | Antenna Base | Adhesive Sticker |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black |
| 2.7 | Connector | IPEX (U.FL) |
5. Antenna Drawing
6. VSWR
7. Radiation Pattern
