External 2.4GHz WIFI Bluetooth Antenna Through Hole Mount WLAN Puck Antenna

Product Description

External 2.4GHz Through Hole Mount WIFI/WLAN Puck Antenna

1. Product Name

    External 2.4GHz Through Hole Mount WIFI/WLAN Puck Antenna

2. Description

--2.1 Applications:

        Access Points

          Base Station

          Public Safety

          Repeaters

          Small Cell

--2.2 Features:

        ISM Band on 2.4GHz

           Omni-Directional with 3dBi Gain

           IP 67 Rated

           SMA Plug

3. Introduction

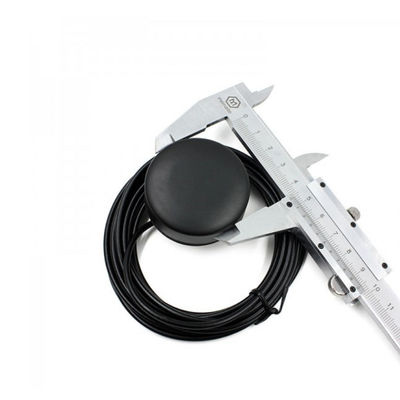

    This is a very compact, puck shaped antenna, tuned to 2.4GHz - WiFi / WLAN / Bluetooth / Zigbee frequencies. It has a diameter of 46mm and height of 15mm, so this antenna will fit comfortably on to most surfaces. Achieving an IP67 rating, this puck antenna is well suited to mounting securely inside or outside, with its 8mm long screw thread that provides a firm fix to its mounting surface. Furthermore, it has an adhesive base for dual mounting purposes and to prevent the risk of water ingress when used in outdoor environments. Also, it is ideal for WiFi based applications that need a high performance antenna that can be mounted securely and remotely from the modem.

      This type of antenna  is tuned to operate within the 2.4 to 2.5GHz frequencies, making this antenna perfect for WiFi, Bluetooth and Zigbee applications. It achieves a high peak gain of 3dBi, helping to improve the short range signal transmission/reception of your WiFi modems, Bluetooth gadgets or even your low power ZigBee sensor

4. Specs

Electrical Properties

Mechanical Properties

5. Antenna Drawing

6. VSWR

7. Radiation Pattern
