Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | MS |
| Certification: | RoHS |
| Model Number: | MS-58TP-003 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 100 PCS |
| Price: | USD$ 1 / PCS - USD$ 1.1 / PCS |
| Packaging Details: | 100 PCS / BAG |
| Delivery Time: | 5-8 days |
| Payment Terms: | D/P |
| Supply Ability: | 100000 PCS |
|
Detail Information |
|||
| Product Name: | External 5.8G WLAN I-Bar Adhesive Mount Antenna | Keyword: | 5.8GHz Adhesive Mount Antenna |
|---|---|---|---|
| Frequency Range: | 5150-5850MHz | Gain: | 3dBi |
| VSWR: | < 2.0 | Impedance: | 50 Ohm |
| Polarization: | Linear | Radiation Pattern: | Omni-Directional |
| Cable Type: | RG174 Coaxial Cable | Connector: | SMA / TNC / FAKRA |
| Highlight: | Adhesive WIFI WLAN Antenna,External WIFI WLAN Antenna,5.8 Ghz High Gain Antenna |
||
Product Description

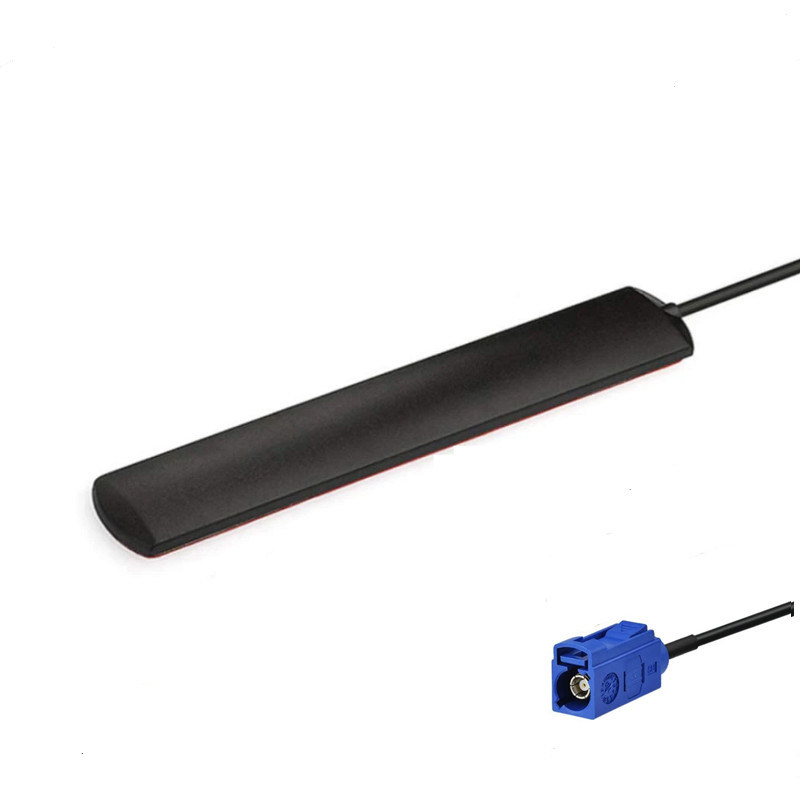

External Low Profile WIFI / WLAN I-Bar Adhesive Mount 5.8GHz Antenna
1. Product Name
External Low Profile WIFI / WLAN I-Bar Adhesive Mount 5.8GHz Antenna
2. Description
--2.1 Applications
First-Tier Automotive Applications
Aftermarket
Telematics
WLANs
--2.2 Features
WLAN 5.8GHz Adhesive Mount Antenna
3m RG174 Cable with Optional Connector
Low Profile For Easy Installation
Fully Customized Cable and Connector
115*22 mm
3. Introduction
This I-Bar antenna is a robust and low profile antenna operating on 5.8GHz WIFI applications.
Also, it has a slim design which allows it embedded and convenient installation in any application.
4. Specs
Electrical Properties
| 1.1 | Frequency | 5150-5850MHz |
| 1.2 | Gain (peak) | 3 dBi |
| 1.3 | V.S.W.R | 2.0 MAX |
| 1.4 | Return Loss | -10dB Maximum |
| 1.5 | Radiation | Omni-Directional |
| 1.6 | Polarization | Linear |
| 1.7 | Power Handling | 2W |
Mechanical Properties
| 2.1 | Cable | RG 174 |
| 2.2 | Antenna Cover | ABS |
| 2.3 | Antenna Base | Sticker |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black / White |
| 2.7 | Connector | SMA Plug / TNC / FAKRA |
5. Antenna Drawing
6. VSWR
7. Radiation Pattern
