Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | MS |
| Certification: | RoHS |
| Model Number: | MS-915BG-0060 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 10PCS |
| Price: | USD$ 10 - USD$ 12 |
| Packaging Details: | 1PCS / BAG |
| Delivery Time: | 5-8 Days |
| Payment Terms: | D/P |
| Supply Ability: | 1000 PCS |
|
Detail Information |
|||
| Product Name: | UHF 915MHz RFID Antenna | Keyword: | RFID Antenna |
|---|---|---|---|
| Frequency Range: | 902-928MHz | Gain: | 6dBi |
| Impedance: | 50 Ω | VSWR: | < 2.0 |
| Polarization: | RHCP | Radiation Pattern: | Directional |
| Connector: | N Female / N Male | Cable Type: | RG58 U |
Product Description
1. Product Name

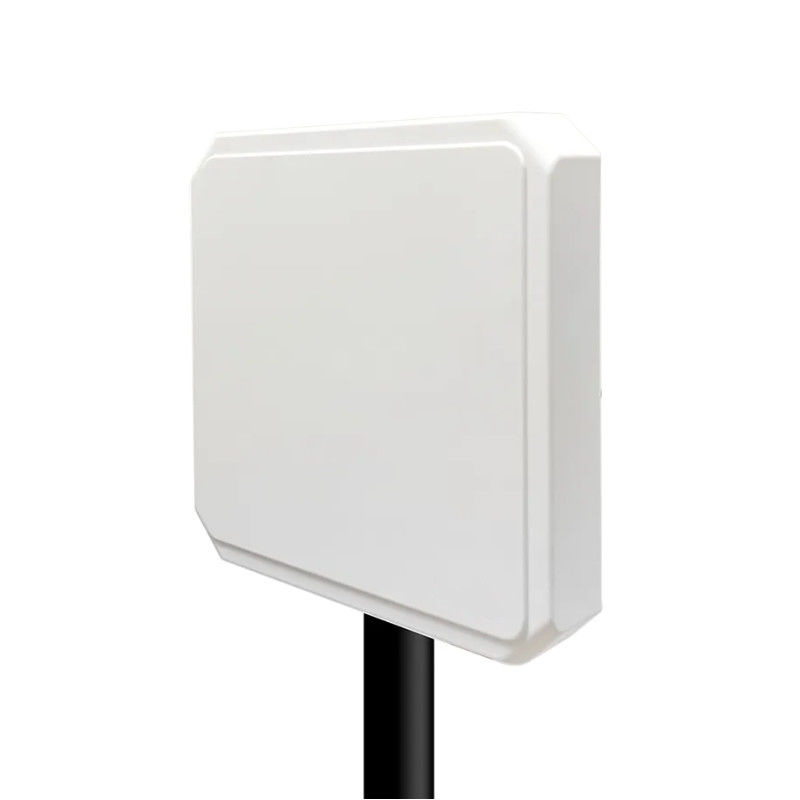

Outdoor UHF 6dBi High Gain RHCP RFID 915MHz Patch Panel Antenna
2. Description
--2.1 Applications
RFID Logistics Tracking
Warehouse Applications
Access Control System
Parking Management
--2.2 Features
Available in RHCP polarization
Suitable for indoor and outdoor applications
Excellent wide frequency band antenna response covering 902-928MHz, ideally suited for global deployments
Common applications: Ceilings and walls to create superior read zones around shelves, doorways and chokepoints where boxes and pallets are moving through, portals, outdoor gates and conveyors
3. Introduction
It offers the flexibility and performance required to meet the needs of enterprises worldwide. Compatible in virtually any global market, this single port antenna can be installed throughout the enterprise in manufacturing and warehouse floor environments or any dock door receiving application.This antenna offers a low axial ratio to deliver a more uniform gain for superior performance.
4. Specs
| Electrical Specifications | |
| Frequency Range (MHz) | 915 |
| Bandwidth (MHz) | 26 |
| Horizontal Beamwidth-° | 360 |
| Vertical Beamwidth-° | 30 |
| Input Impedance (Ω) | 50 |
| V.S.W.R | ≤ 1.5 |
| Gain (dBi) | 6 |
| Max Input Power (W) | 20 |
| Mechanical Specifications | |
| Antenna Dimension (mm) | 160*160*18 |
| Connect Type | N Male / N Female |
| Rated Wind Velocity | |
| Work Temperature ℃ | -40- +80 |
| Pole Diameter-mm | Φ40-50 |
| Cable length-mm | |
| Weight (g) | 980 |
