Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | MS |
| Certification: | RoHS |
| Model Number: | MS-915BLG-001 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 10 PCS |
| Price: | USD$ 15 / PCS - USD$ 18 / PCS |
| Packaging Details: | 10 PCS / BOX |
| Delivery Time: | 5-8 days |
| Payment Terms: | D/P |
| Supply Ability: | 10000 PCS |
|
Detail Information |
|||
| Product Name: | 915MHz Fiberglass Omni Directional Outdoor Antenna | Keyword: | 915MHz Fiberglass Antenna |
|---|---|---|---|
| Frequency Range: | 902-928 MHz | Gain: | 3dBi |
| VSWR: | < 2.0 | Impedance: | 50 Ohm |
| Polarization: | Linear | Radiation Pattern: | Omni-Directional |
| Horizontal Bandwidth: | 360 Deg | Vertical Bandwidth: | 60 Deg |
| Input Power: | 50 W | Connector: | N Male / N Female |
| Highlight: | 915MHz Outdoor Fiberglass Antenna,3dBi Outdoor Fiberglass Antenna,ISM Omni Directional Antenna |
||
Product Description

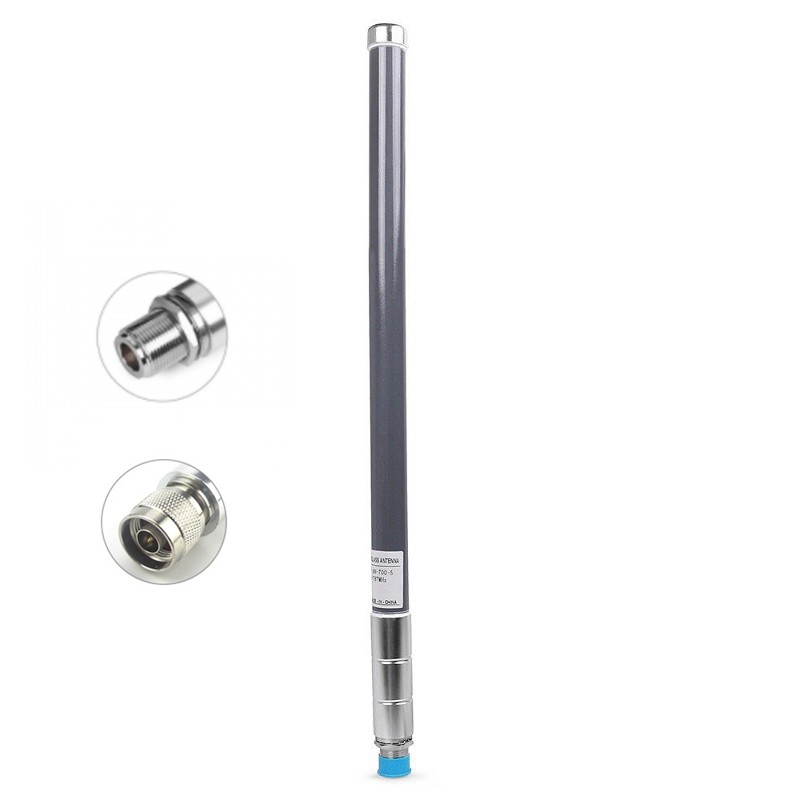

Outdoor 915MHz 3dBi ISM Band Omni Directional Fiberglass Antenna
1. Product Name
Outdoor 915MHz 3dBi ISM Band Omni Directional Fiberglass Antenna
2. Description
--2.1 Applications
Metering
Industrial / Environmental Monitoring
Remote Asset Monitoring
Mesh Network
--2.2 Features
3dBi Peak Gain
Omni Directional
360mm in Length
Efficiency > 60 %
Connector : N Male or N Female
Wall / Pole Mount (U Bracket)
3. Introduction
This is a fiberglass omni directional outdoor antenna operating in 902-928MHz ISM band, which is designed to offer long distance coverage .
It is one of the most widely used license free ISM bands with 3dBi Peak Gain.
4. Specs
Electrical Properties
| 1.1 | Frequency | 902-928MHz |
| 1.2 | Gain (peak) | 3dBi |
| 1.3 | V.S.W.R | 2.0 MAX |
| 1.4 | Return Loss | -10dB Maximum |
| 1.5 | Radiation | Omni-Directional |
| 1.6 | Polarization | Linear |
| 1.7 | Power Handling | 50 W |
Mechanical Properties
| 2.1 | Cable | |
| 2.2 | Antenna Cover | Fiberglass |
| 2.3 | Antenna Base | U Bracket |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black |
| 2.7 | Connector | N Male / N Female |
5. Antenna Drawing
6. VSWR
7. Radiation Pattern
