Internal Quad Band GSM GPRS FPC 2G 3G Antenna 2dbi Plastic Antenna

Product Description

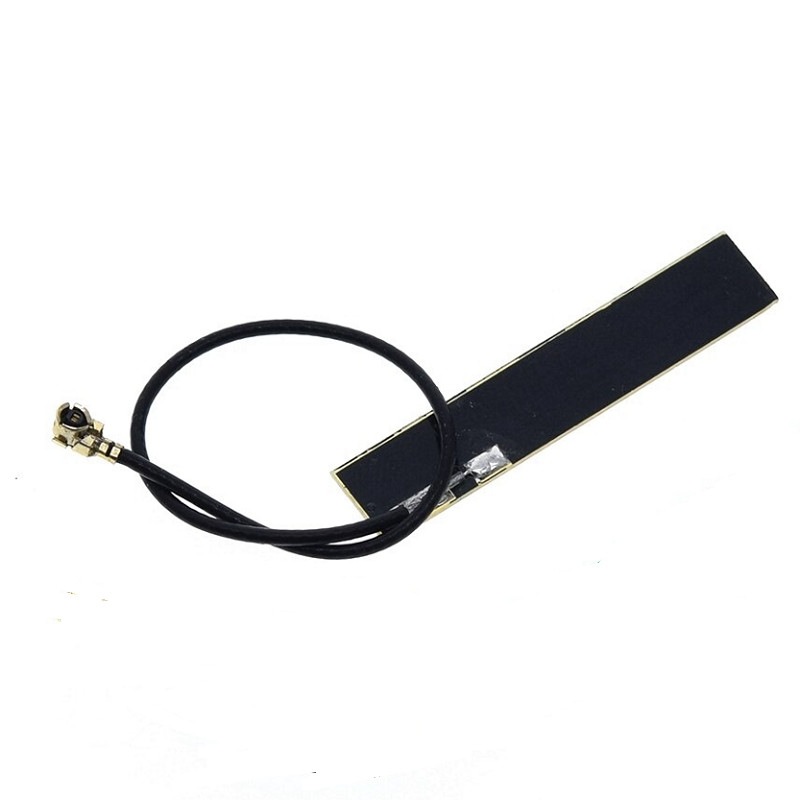

Internal 2dBi Quad Band GSM/GPRS 3G FPC Antenna

1. Product Name

    Internal 2dBi Quad Band GSM/GPRS 3G FPC Antenna

2. Description

--2.1 Applications

        ISM on 868MHz

          ISM on 915MHz

          GSM Systems

          RF Modules

          M2M  and 3G Devices

--2.2 Features

        Quad Band GSM and 3G

           Compact Size : 55* 7 mm

           Flexible Cable RG1.13 and RG1.37 Optional

           ISM 868MHz or 915MHz

           Ground Plane Independent

           Works with GPRS Devices, 3G and ISM

           2dBi High Gain

3. Introduction

    This flexibel PCB antenna is based on an efficiently tuned PCB Element that is matched and embedded to work with a wide variety of RF & M2M modules operating on quad band GSM, 3G and ISM frequencies

      Proven in many embedded applications, it is groundplane independent and compact making it a popular choice where a small size is important. Its wide ranging connector and cable options makes it a convenient antenna for a quick design in whilst the miniature design allows it to fix to the inside of an enclosure or side of PCB

4. Specs

Electrical Properties

Mechanical Properties

5. Antenna Drawing

6. VSWR

7. Radiation Pattern
