Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | MS |
| Certification: | RoHS |
| Model Number: | MS-GSMXP-002 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 100 PCS |
| Price: | USD$ 1.2 / PCS - USD$ 1.3 / PCS |
| Packaging Details: | 100 PCS / BAG |
| Delivery Time: | 5-8 days |
| Payment Terms: | D/P |
| Supply Ability: | 10000 PCS |
|
Detail Information |
|||
| Product Name: | GSM GPRS 3G Magnetic Mount Antenna | Keywords: | 2G 3G Antenna |
|---|---|---|---|
| Frequency Range: | 824-960 / 1710-2170 MHz | Gain: | 3dBi |
| Impedance: | 50 Ohm | VSWR: | < 2.0 |
| Polarization: | Vertical | Radiation Pattern: | Omni-Directional |
| Dimensions: | 105*34 Mm | Cable Type: | RG 174 |
| Connector: | SMA Or Customized | Mounting: | Magnetic |
| Highlight: | Quad Band GSM 3G Antenna,GPRS GSM 3G Antenna,50 ohm antenna |
||
Product Description

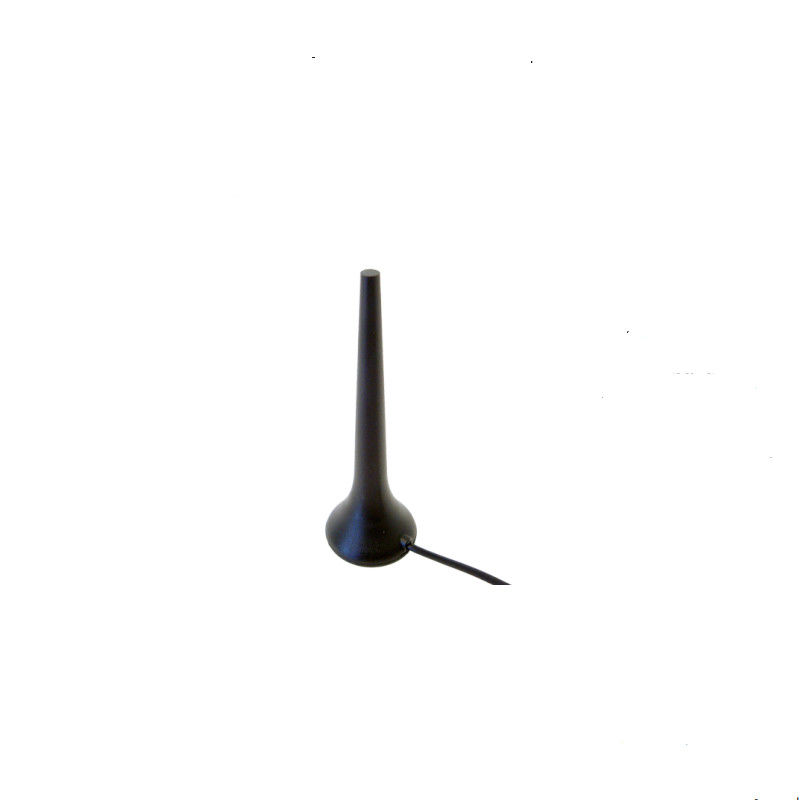

External 2dBi Stubby Magnetic Mount Quad Band GSM (GPRS) 3G Antenna
1. Product Name
External 2dBi Stubby Magnetic Mount Quad Band GSM (GPRS) 3G Antenna
2. Description
--2.1 Applications
ISM Bands
RFID on 868 / 915 MHz
GSM GPRS Systems
3G and UMTS Systems
--2.2 Features
2dBi Gain
Magnetic Mount
Connector and Cable Optionals
Quad Band GSM and 3G Frequency
105*35 mm
3. Introduction
This is a magnetic mount antenna is very popular, and also can be used by many users of GSM / GPRS & 3G.
With cables and connectors optionals goes by with cable length. It is ideally suited to metering or alarm panels as well as manufacturers evaluation kits as it provides a fast, reliable fit for installers.
4. Specs
Electrical Properties
| 1.1 | Frequency | 824-960 / 1710-2170 MHz |
| 1.2 | Gain (peak) | 2dBi |
| 1.3 | V.S.W.R | 2.0 MAX |
| 1.4 | Return Loss | -10dB Maximum |
| 1.5 | Radiation | Omni-directional |
| 1.6 | Polarization | Linear Vertical |
| 1.7 | Power Handling | 5W |
Mechanical Properties
| 2.1 | Cable | RG 174 |
| 2.2 | Antenna Cover | TPE |
| 2.3 | Antenna Base | Magnet |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black |
| 2.7 | Connector | SMA Plug or customized |
5. Antenna Drawing
6. VSWR
7. Radiation Pattern
