Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | MS |
| Certification: | RoHS |
| Model Number: | MS-433-XJT-002 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 100 PCS |
| Price: | USD$ 0.3 / PCS - USD$ 0.35 / PCS |
| Packaging Details: | 100 PCS / BAG |
| Delivery Time: | 5-8 days |
| Payment Terms: | D/P |
| Supply Ability: | 100000 PCS |
|
Detail Information |
|||
| Product Name: | 433MHz ISM Band Terminal Mount Antenna | Frequency Range: | 430-435 MHz |
|---|---|---|---|
| Gain: | 0 DBi | VSWR: | < 1.5 |
| Return Loss: | - 20 DB | Impedance: | 50 Ohm |
| Radiation Pattern: | Omni-Directional | Polarization: | Linear |
| Power Handling: | 5 W | Housing: | TPE |
| Connector: | SMA Male RA Plug | Length: | 49 Mm |
| High Light: | ISM Omnidirectional Fm Antenna,Band Omnidirectional Fm Antenna,433mhz external antenna |
||
Product Description

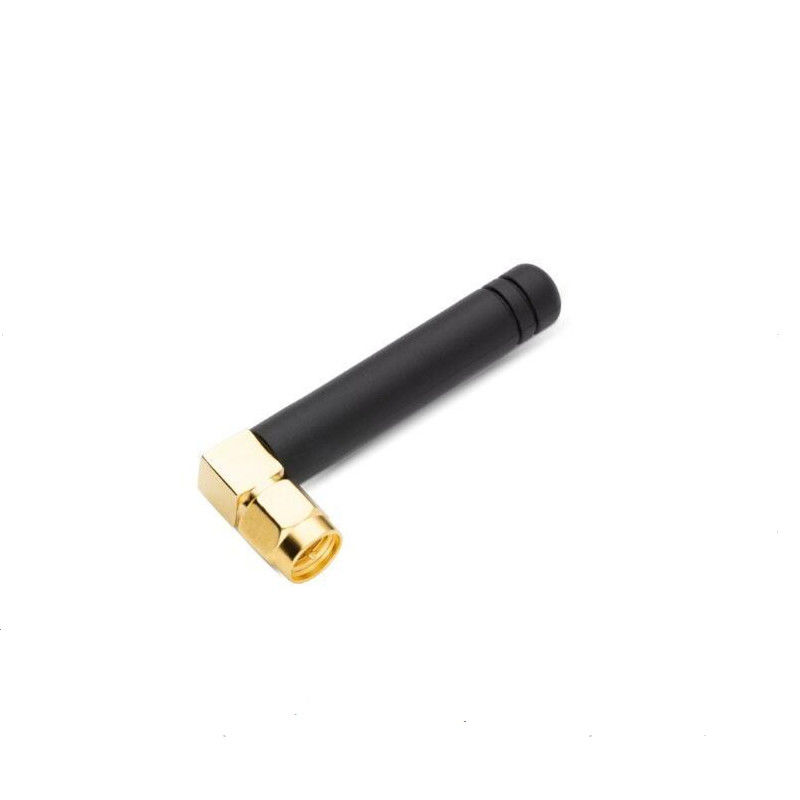

External 433MHz ISM Band Omni Directional Terminal Antenna
1. Product Name
External 433MHz ISM Band Omni Directional Terminal Antenna
2. Description
--2.1 Applications
General Low Power Radio
M2M Applications
RFID
Telemetry
--2.2 Features
1/4 Wave Monopole Antenna
Omni Directional
RA SMA Male Connector
ABS/TPE Housing
0dBi Gain
3. Introduction
This is a high performance 433MHz omni-directional antennas. The terminal SMA R/A plug mount antenna is ideal for mobile small form factor applications. At only 49mm in length Omni-directional with a peak gain 0dBi ensures constant reception and transmission. The antenna structure is designed for robust handling and the housing is made with TPE giving reliable performance in tough environments
4. Specs
Electrical Properties
| 1.1 | Frequency | 430-435 MHz |
| 1.2 | Gain (peak) | 0 dBi |
| 1.3 | V.S.W.R | 1.8 MAX |
| 1.4 | Return Loss | -10dB Maximum |
| 1.5 | Radiation | Omni-directional |
| 1.6 | Polarization | Linear Vertical |
| 1.7 | Power Handling | 5 W |
Mechanical Properties
| 2.1 | Cable | |
| 2.2 | Antenna Cover | TPE/ ABS |
| 2.3 | Antenna Base | Connector Mount |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black |
| 2.7 | Connector | RA-SMA Plug |
5. Antenna Drawing
6. VSWR
7. Radiation Pattern
