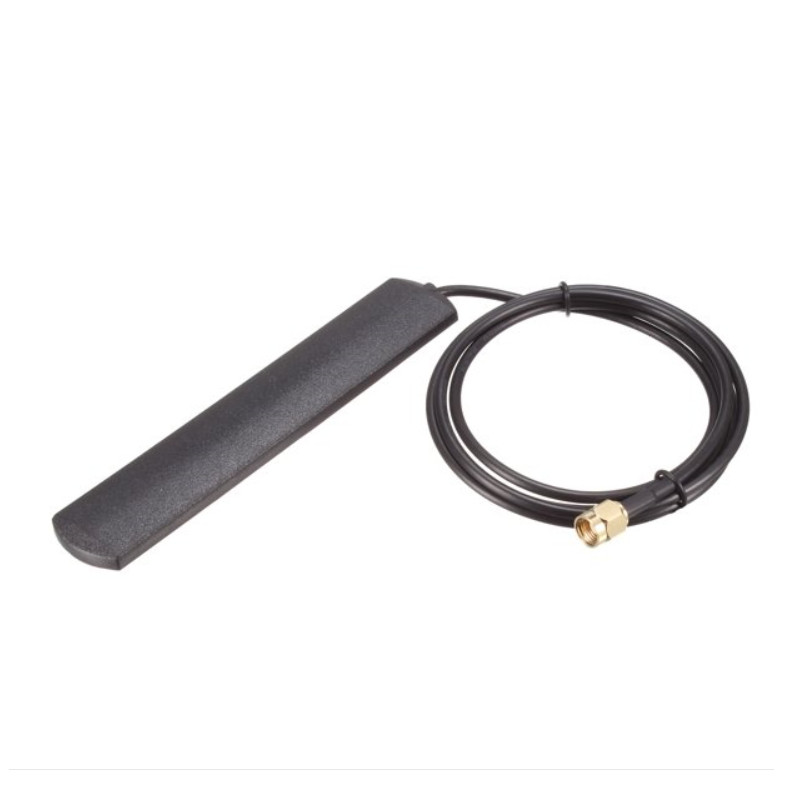

External Tri Band Antenna GSM UMTS 3dBi Omnidirectional Wifi Antenna Glass Mount Patch

Product Details:
Place of Origin: China
Brand Name: MS
Certification: RoHS
Model Number: MS-4GLTE-001
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: USD$ 0.8 / PCS - USD$ 1 / PCS
Packaging Details: 100 PCS / BAG
Delivery Time: 5-8 days
Payment Terms: D/P
Supply Ability: 10000 PCS

Detail Information

Product Name: External GSM UMTS Glass Mount Patch Antenna Frequency Range: 900/1800/2200MHz
Gain: 3 DBi Max Input Power: 5 W
VSWR: < 2.0 Impedance: 50 Ohm
Polarization: Vertical Antenna Material: TPE
Antenna Color: Black Cable Type: RG174
Connector: SMA / FME / BNC Mounting: Adhesive Sticker
High Light:

External Tri Band Antenna

,

GSM Tri Band Antenna

,

Omnidirectional Wifi Antenna

Product Description

External Tri-Band GSM/UMTS 3dBi Omni-Directional Glass Mount Patch Antenna



1. Product Name

    External Tri-Band GSM/UMTS 3dBi Omni-Directional Glass Mount Patch Antenna



2. Description

--2.1 Applications:

        PCS Cellular Radio Applications

           UMTS,GSM,G3, ISM, WLAN, RFID Applications

           Mobile Applications

           Low Profile Mounting -Stick on Foam Tape

           Remoting  Antenna Location for Better Reception



--2.2 Features:

        Superior Performance

           Compact Size

           Used with 900/1800/1900/2100MHz Systems

           Mounting with 3m RG174 Coaxial Cable

           Indoor Use

           RoHS Compliant



3. Introduction

    This compact UMTS/WLAN tri-band 2dBi omni directional antena provides broad coverage and is designed to operate in 824-960MHz, 1710-2170MHz bands. This tri-band design eliminates the need to purchase different antennas for each frequency. In the 824-960MHz bands, it is ideally suited for GSM,ISM, WLAN, RFID appliations. In the 1710-2170MHz bands, it can be used with UMTS applications and personal communication services (PCS) cellular radio wireless applications.

-

4. Specs

Electrical Properties

1.1 Frequency 900/1800/2100 MHz
1.2 Gain (peak) 3 dBi
1.3 V.S.W.R 2.0 MAX
1.4 Return Loss -10dB Maximum
1.5 Radiation Omni-directional
1.6 Polarization Linear Vertical
1.7 Power Handling 5 W



Mechanical Properties

2.1 Cable RG 174
2.2 Antenna Cover TPE
2.3 Antenna Base Sticker
2.4 Operating Temperature -20℃ ~ +65℃
2.5 Storage Temperature -30℃ ~ +75℃
2.6 Color Black
2.7 Connector SMA Plug / FME Female / BNC





5. Antenna Drawing

External Tri Band Antenna GSM UMTS 3dBi Omnidirectional Wifi Antenna Glass Mount Patch 0



6. VSWR

External Tri Band Antenna GSM UMTS 3dBi Omnidirectional Wifi Antenna Glass Mount Patch 1



7. Radiation Pattern

External Tri Band Antenna GSM UMTS 3dBi Omnidirectional Wifi Antenna Glass Mount Patch 2
