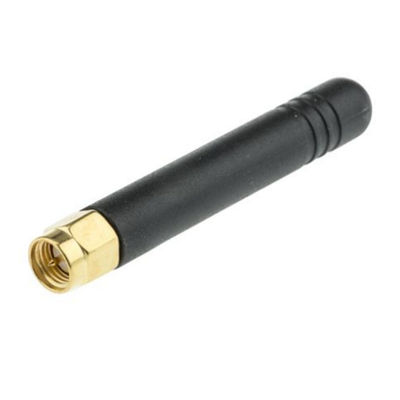

External Cellular / LTE (NB-IoT) Connector Mount Antenna

Product Details:
Place of Origin: China
Brand Name: MS
Certification: RoHS
Model Number: MS-NB-002
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: USD$ 0.5 / PCS - USD$ 0.55 / PCS
Packaging Details: 100 PCS / BAG
Delivery Time: 5-8 days
Payment Terms: D/P
Supply Ability: 10000 PCS

Detail Information

Product Name: External Cellular / LTE Connector Mount Antenna Keyword: NB-IoT Antenna
Frequency Range: 698-960 / 1710-2170 MHz Peak Gain: 2dBi
VSWR: < 3.5 Impedance: 50 Ohm
Polarization: Linear Radiation Pattern: Omni-Directional
Length: 59 Mm Connector: SMA Male
High Light:

External NB-IoT Antenna


Cellular NB-IoT Antenna


4g lte outdoor antenna

Product Description

1. Product Name

    External Cellular / LTE (NB-IoT) Connector Mount Antenna


2. Description

--2.1 Applications

         Infotainment Systems

          HD Video Transmission

          Dash Cameras

          Connected Cars

          Fleet Management


          Public Transportation



--2.2 Features

        Sustained High Efficiency and Performance

           NB-IoT and Portable Devices

           Ground Plane Independent


3. Introduction

    This IoT connector mount antenna is designed for compact installations with no compromise on efficiency and performance. It is suitable for Low Power Wide Area Network NB-IoT applications where devices require constant connectivity within frequencies operating between 698-960/1710-2170MHz. It is also ideal for HD video transmission, dash cameras, fleet management, logistics, routers and so on.


4. Specs

Electrical Properties

1.1 Frequency 698-960/1710-2170MHz
1.2 Gain (peak) 2dBi
1.3 V.S.W.R 3.5 MAX
1.4 Return Loss -5dB Maximum
1.5 Radiation Omni-directional
1.6 Polarization Linear
1.7 Power Handling 2W


Mechanical Properties

2.1 Cable
2.2 Antenna Cover TPE
2.3 Antenna Base Brass
2.4 Operating Temperature -20℃ ~ +65℃
2.5 Storage Temperature -30℃ ~ +75℃
2.6 Color Black
2.7 Connector SMA Plug



5. Antenna Drawing

External Cellular / LTE (NB-IoT) Connector Mount Antenna 0



External Cellular / LTE (NB-IoT) Connector Mount Antenna 1


7. Radiation Pattern

External Cellular / LTE (NB-IoT) Connector Mount Antenna 2
