Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | MS |
| Certification: | RoHS |
| Model Number: | MS-YW-001 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 100 PCS |
| Price: | USD$ 2 / PCS - USD$ 2.2 / PCS |
| Packaging Details: | 100 PCS / BOX |
| Delivery Time: | 5-8 days |
| Payment Terms: | D/P |
| Supply Ability: | 10000 PCS |
|
Detail Information |
|||
| Product Name: | Outdoor NB-IoT Terminal Mount Antenna | Keyword: | NB-IoT Terminal Antenna |
|---|---|---|---|
| Frequency Range: | 824-960 MHz | VSWR: | < 2.5 |
| Gain: | 3 DBi | Impedance: | 50 Ohm |
| Polarization: | Linear | Radiation Pattern: | Omni-Directional |
| Connector: | N Male | Antenna Length: | 180 Mm |
| High Light: | Outdoor NB-IoT Antenna,Omni NB-IoT Antenna,915 mhz directional antenna |
||
Product Description
1. Product Name

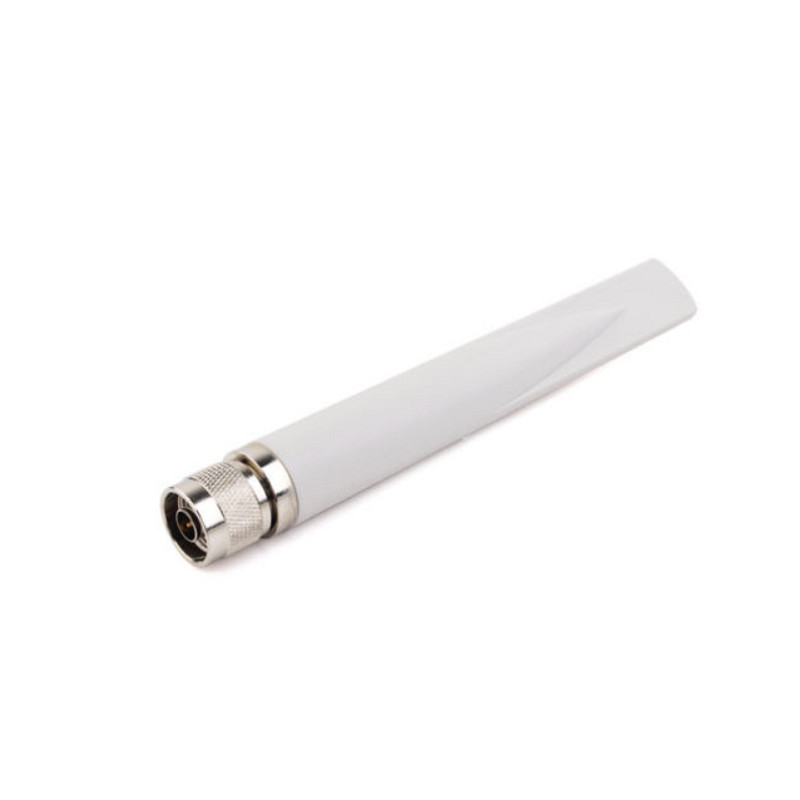

Outdoor NB-IoT 868/915MHz Omni Directional CPE Terminal Antenna
2. Description
--2.1 Applications
Remote Monitoring
Digital Signage
Mesh Networks
Vending Machines
Remote Control
--2.2 Features
Sigfox / LoRa : 868 / 915MHz
Indoor / Outdoor Applications
Omni Directional Dipole
N Type Male Connector
Dimensions: 180 * 20 mm
3. Introduction
This Blade 868/915MHz Antenna is a high performance, Omnidirectional terminal mount dipole antenna for use with SigFox/LoRA/ISM network applications. It covers both widely used SigFox/LoRA/ISM frequencies of 868 and 915MHz. It uses a robust PC/ABS enclosure, ideal for outdoor applications which also performs well without a ground plane - at least >47% efficiency and 2dBi high gain while also maintaining an Omni-Directional pattern for constant reception/transmission.
4. Specs
Electrical Properties
| 1.1 | Frequency | 824-960 MHz |
| 1.2 | Gain (peak) | 3 dBi |
| 1.3 | V.S.W.R | 2.5 MAX |
| 1.4 | Return Loss | -10dB Maximum |
| 1.5 | Radiation | Omni-directional |
| 1.6 | Polarization | Linear |
| 1.7 | Power Handling | 5W |
Mechanical Properties
| 2.1 | Cable | RG 316 |
| 2.2 | Antenna Cover | ABS |
| 2.3 | Antenna Base | Connector Mount |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black / White |
| 2.7 | Connector | N Male |
5. Antenna Drawing
6. VSWR
7. Radiation Pattern
