| Product Name: | Internal GPS/GLONASS/BEIDOU/Galileo Active Antenna | Keywords: | Active GPS Antenna |
|---|---|---|---|
| Frequency Range: | 1575-1602MHz | Gain: | 28dBi |
| VSWR: | < 2.0 | Impedance: | 50 Ohm |
| Radiation Pattern: | Omni-Directional | Polarization: | RHCP |
| Cable Type: | RG1.13 / RG1.37 | Connector: | IPEX (U.FL) |
| Axial Ratio: | 4dB | Size: | 25*25*10.5 Mm |
| High Light: | Galileo GPS GLONASS Antenna,28dBi GPS GLONASS Antenna,microstrip patch antenna |
||
Product Description
1. Product Name

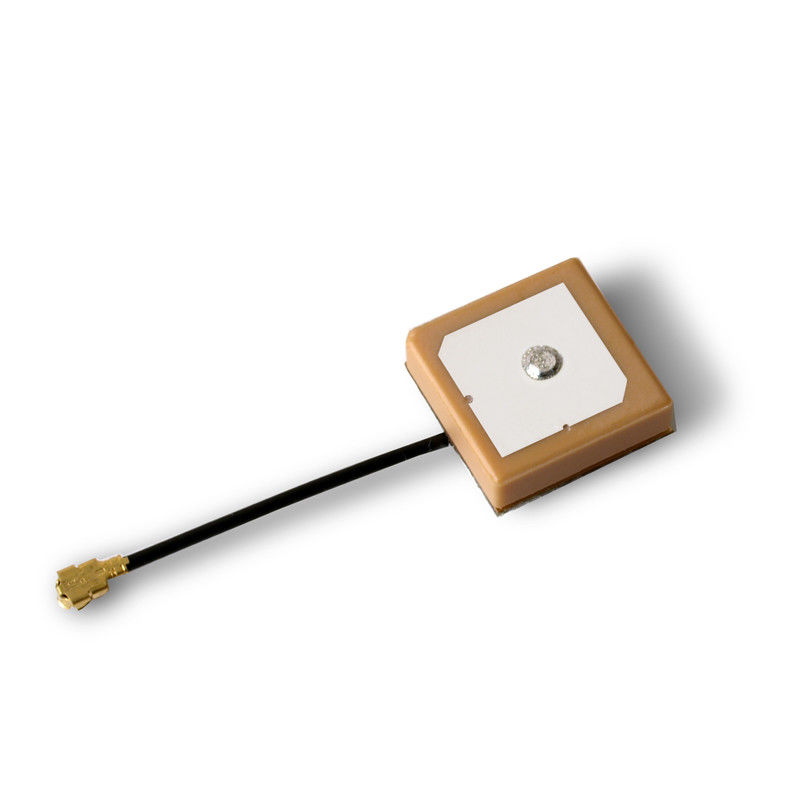

Internal 28dBi Active Microstrip GPS/GLONASS/BEIDOU/Galileo Antenna
2. Description
--2.1 Applications
GPS/GLONASS/BEIDOU Navigation System
Vehicle Location System
Mobile Management
Telematices
Fleet Management
Tracking
--2.2 Features
Two Stage LNA with Filter
Small Footprint
L1 Band
28dBi High Gain
Active Type
3. Introduction
This is a high performance GPS active antenna with low consumption. It is designed to survive in all types of shells which makes it ideal for telematics , fleet management, navigation, tracking and other applications that requires a compact high performance internal GPS antenna
.
4. Specs
Electrical Properties
| 1.1 | Frequency | 1575-1602 MHz |
| 1.2 | Gain (peak) | 28 dBi |
| 1.3 | V.S.W.R | 2.0 MAX |
| 1.4 | Return Loss | -10dB Maximum |
| 1.5 | Radiation | Omni-Directional |
| 1.6 | Polarization | RHCP |
| 1.7 | Input Voltage | 3-5 V |
Mechanical Properties
| 2.1 | Cable | RG1.13 / RG1.37 |
| 2.2 | Antenna Cover | |
| 2.3 | Antenna Base | |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black |
| 2.7 | Connector | IPEX (U.FL) |
5. Antenna Drawing
6. VSWR
7. Radiation Pattern On RHCP
