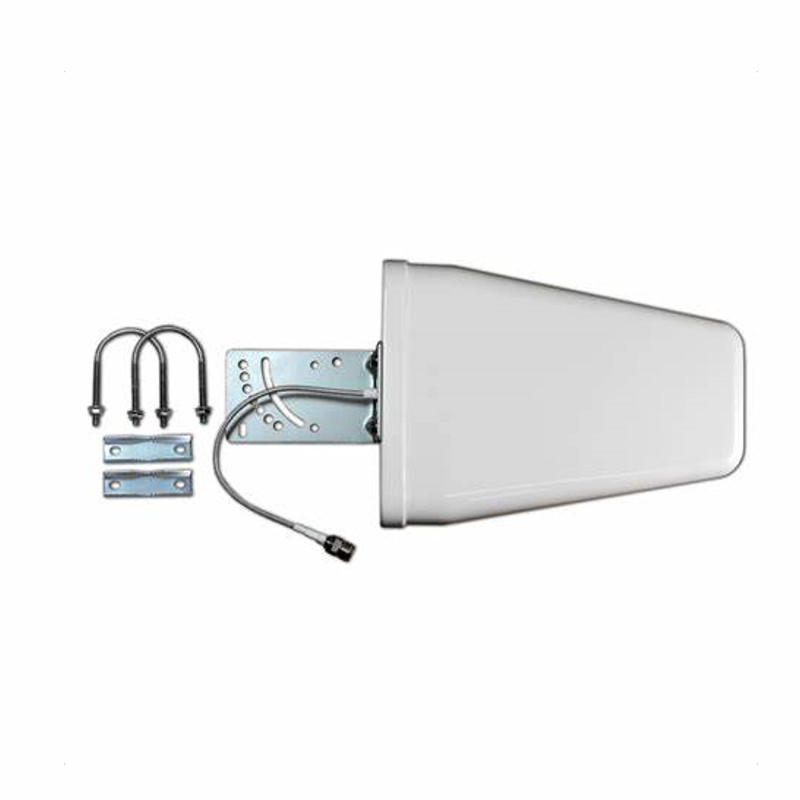

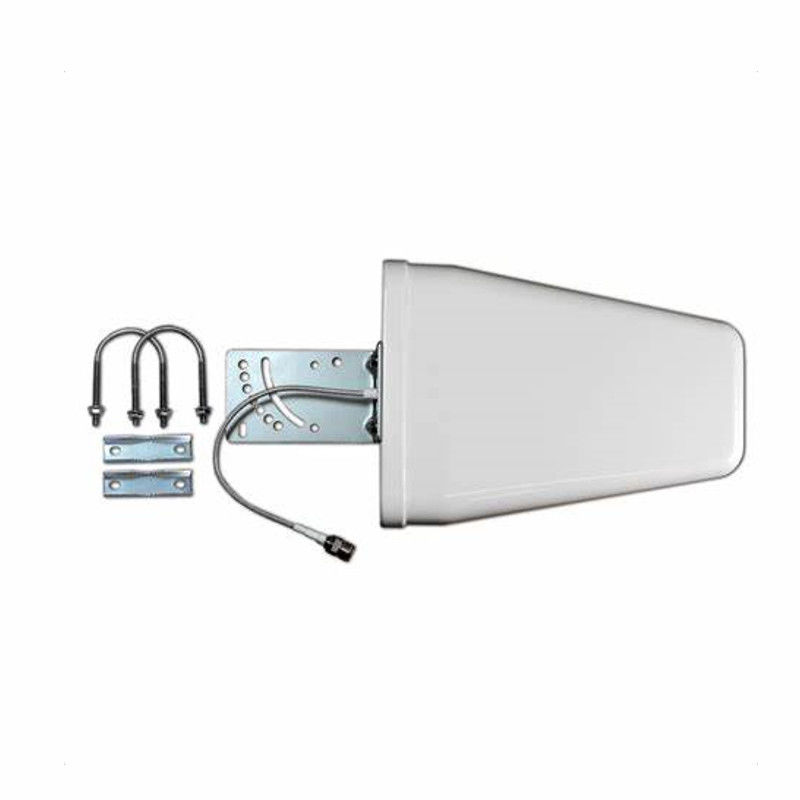

Outdoor 9dBi High Gain GSM/3G/4G LTE Cellular LPDA Antenna

Product Description

1. Product Name

    Outdoor 9dBi High Gain GSM/3G/4G LTE Cellular LPDA Antenna

2. Description

--2.1 Applications

        GSM/CDMA/PCS/DCS/3G/4G/WLAN

           Distributed Antenna Systems, DAS

           Fixed Wireless Voice and Data Applications

           IEEE802.11b/g/n Access Points and Routers

           M2M Communications (ATMs, Financial Data Processing, Telemetry)

--2.2 Features

        9dBi High Gain

           Broad Band, Low VSWR

           All Weather Operation

           Ideal For Multiband Access Points and Routers

           Supplied with Tilt and Swivel Mast Bracket

3. Introduction

     This is a high performance wide band log periodic antenna designed to operate from 698-2700MHz. This wide design eliminates the need to purchase different antennas for each frequency. The simplified installation since the same antenna can be used for a wide array of wireless applications where wide coverage desired .

     It is also ideal for distributed antenna system ,DAS. A DAS system is used to distribute cellular and WIFI signals throughout a building or area. It is suited for directional and multipoint IEEE 802.11b/g/n  wireless LANs, public wireless hotspot applications and other systems operating in the 2.4GHz ISM band.

4. Specs

Electrical Properties

Mechanical Properties

5. Antenna Drawing

6. VSWR

7. Radiation Pattern
