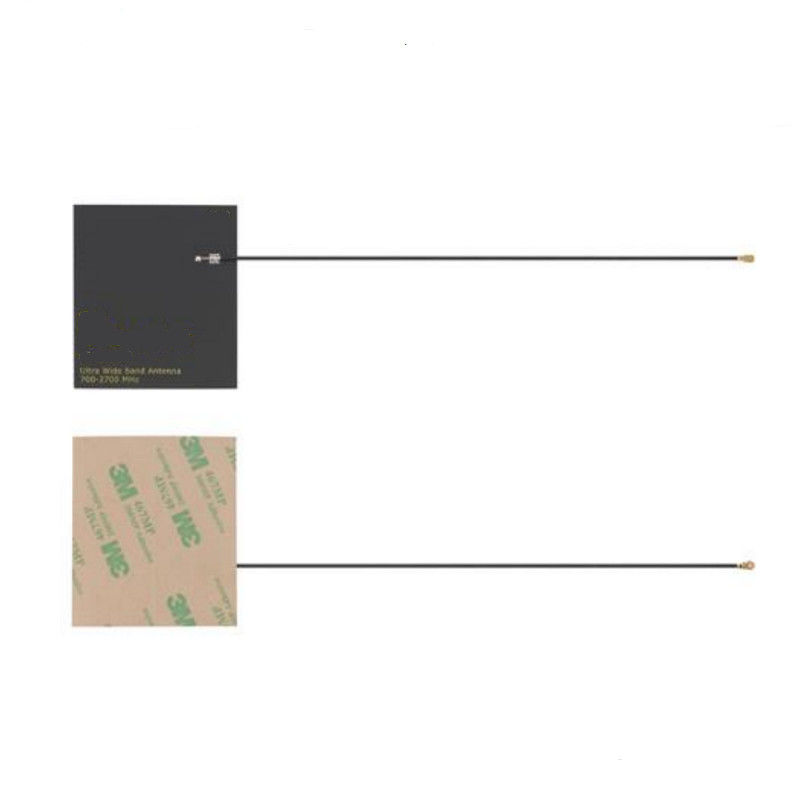

Internal Embedded Flexible 2G/3G/4G LTE Wide Band FPC Antenna

Product Description

1. Product Name

    Internal Embedded Flexible 2G/3G/4G LTE Wide Band FPC Antenna

2. Description

--2.1 Applications:

        2G, 3G Devices

           LTE (700MHz), GSM,DCS, PCS, UMTS, WIFI

           Multimedia and Telematics Systems

           Fleet Management Applications

            HD Video Streaming

            Digital Signage and Remote Monitoring

            First Net Responder Routers

--2.2 Features:

        Flexible Wideband Antenna

           Cover Worldwide 4G LTE / 3G / 2G Bands

           Isotropic Radiation Pattern

           High Efficiency in Small Size

           67*58*0.2 mm

           IPEX and RG1.13 / RG1.37 (Optional) Coaxial Cable

3. Introduction

    This flexible antenna has been designed to cover 4G bands in the 700-2700 MHz spectrum, but also optimally covers 3G and 2G. The antenna has a compact, flexible, modern design, with excellent efficiencies on all target bands.

      It is made from flexible polymer material, which is ultra-thin, compact and highly efficient across the 4G and 3G bands. It is installed by a simple “peel and stick” process, attaching securely to non-metal surfaces via adhesive sticker.

4. Specs

Electrical Properties

Mechanical Properties

5. Antenna Drawing

6. VSWR

7. Radiation Pattern
