External Magnetic Adhesive Mount 3-5V Active GPS GLONASS Antenna

Product Details:
Place of Origin: China
Brand Name: MS
Certification: RoHS
Model Number: MS-GPS-005
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: USD$ 2 / PCS - USD$ 2.3 / PCS
Packaging Details: 1 PCS / BAG
Delivery Time: 8-10 days
Payment Terms: D/P
Supply Ability: 10000 PCS / Month

Detail Information

Product Name: Active GPS GLONASS Antenna Frequency Range: 1575-1602 MHz
Gain: 28 DBi VSWR: < 2.0
Impedance: 50 Ohm Polarization: RHCP
Weight: 90 G Connector: SMA / MMCX / FAKRA
Waterproof: IP 65
High Light:

Magnetic GPS GLONASS Antenna




wideband active antenna

Product Description

1. Product Name:
    External Magnetic Mount 3-5V Active GPS/GLONASS Antenna
2. Description
    This is a an ultra small footprint GPS active antenna, ideal for the smallest of spaces which is an adhesive mounting antenna (not magnetic) and is at home in virtually any environment. It is IP65 rated with a wide operating temperare range of -40 to +85°C and is suitable for many ‘rugged’ and vibrating situations. It comes as standard in GPS 1574.5MHz form and 1, 3 and 5m cable and SMA male connector. Also, it can be supplied as a GPS/GLONASS antenna and alternative cable lengths and connector style
3. Introduction
     This is a high performance GPS active antenna with low consumption. It is designed to survive all types of weather with IP 65 rating which makes it ideal for telematics , fleet management, navigation, tracking and other applications that requires a compact high performance GPS antenna.
--3.1 Applications:


           Fleet management



--3.2 Features:

           Compact Size

           High gain, low noise design

           Low current consumption

           IP65 Rated

           Magnetic mount

4. Specs

Electrical Properties

1.1Frequency1575.42 - 1602 MHz
1.2Gain (peak)28 dBi
1.3V.S.W.R2 MAX
1.4Return Loss-10dB Maximum
1.7Power Handling1W



Mechanical Properties

2.1CableRG-174 Coaxial Cable
2.2Antenna CoverTPE
2.3Antenna BasePC&PBT
2.4Operating Temperature-20℃ ~ +65℃
2.5Storage Temperature-30℃ ~ +75℃
2.6ColorBlack or White
2.7ConnectorRP-SMA Plug or SMA Plug

5. Antenna Drawing

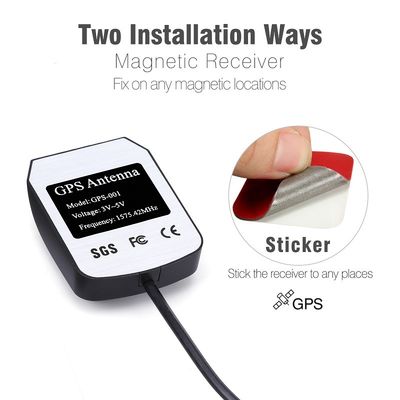

External Magnetic Adhesive Mount 3-5V Active GPS GLONASS Antenna 0
External Magnetic Adhesive Mount 3-5V Active GPS GLONASS Antenna 1
7. Radiation Pattern On 1575.42MHz
External Magnetic Adhesive Mount 3-5V Active GPS GLONASS Antenna 2
