Internal NB-IoT Antenna Omni-Directional 6dBi Embedded 900MHz

Product Details:
Place of Origin: China
Brand Name: MS
Certification: RoHS
Model Number: MS-900NZ-001
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: USD$ 0.7 / PCS - USD$ 1 / PCS
Packaging Details: 100 PCS / BAG
Delivery Time: 5-8days
Payment Terms: D/P
Supply Ability: 100000 PCS / Month

Detail Information

Product Name: 900MHz NB-IoT Antenna Frequency Range: 824-960 MHz
Gain: 5 DBi VSWR: < 2.0
Impedance: 50 Ohm Polarization: Linear
Connector: IPEX (u.fl) Color: Black
High Light:

Internal NB-IoT Antenna


Embedded NB-IoT Antenna


6dbi omni antenna

Product Description

1. Product Name:
      Internal Omni-Directional 6dBi Embedded 900MHz NB-IoT Antenna
2. Description
--2.1 Applications:
          IOT & M2M
          Multipoint applications
          LoRa wireless networks
          ISM band applications
          Wireless video links
          GSM, SCDMA applications
--2.2 Features:

           SigFox/LoRA/ISM (868MHz – 915MHz)

           Superior all weather performance
           6dBi High Gain
            Light weight
           IPEX (U.FL) connector
           Dimension:  68*59 mm

3. Introduction
This is a 900MHz high performance omnidirectional antenna designed for Sigfox / LoRa / ISM band. It is ideally suited for multipoint and NLOS, also mobile applications where high gain and wide coverage is desired. Typical applications include 900MHz wireless LAN, SCDMA, wireless video links and 868MHz as well as 915MHz cellular band applications.
4. Specs

Electrical Properties

1.1 Frequency 824-960 MHz
1.2 Gain (peak) 6 dBi
1.3 V.S.W.R 2 MAX
1.4 Return Loss -10dB Maximum
1.5 Radiation Omni-directional
1.6 Polarization Linear
1.7 Power Handling 1W



Mechanical Properties

2.1 Cable RG-1.13  Coaxial Cable
2.2 Antenna Cover FPC
2.3 Antenna Base Sticker
2.4 Operating Temperature -20℃ ~ +65℃
2.5 Storage Temperature -30℃ ~ +75℃
2.6 Color Black
2.7 Connector IPEX (u.fl

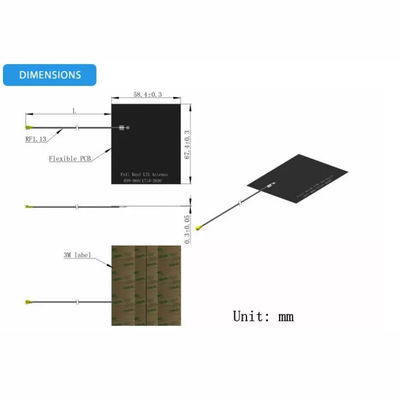

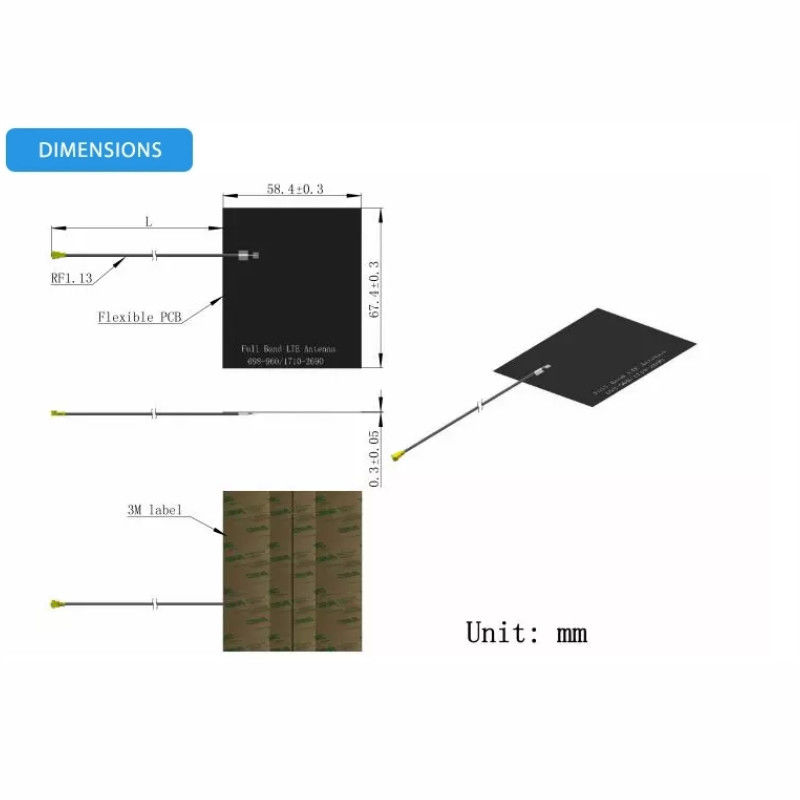

5. Antenna Drawing
Internal NB-IoT Antenna Omni-Directional 6dBi Embedded 900MHz 0
6. Return Loss
Internal NB-IoT Antenna Omni-Directional 6dBi Embedded 900MHz 1
7. Radiation Pattern
Internal NB-IoT Antenna Omni-Directional 6dBi Embedded 900MHz 2
