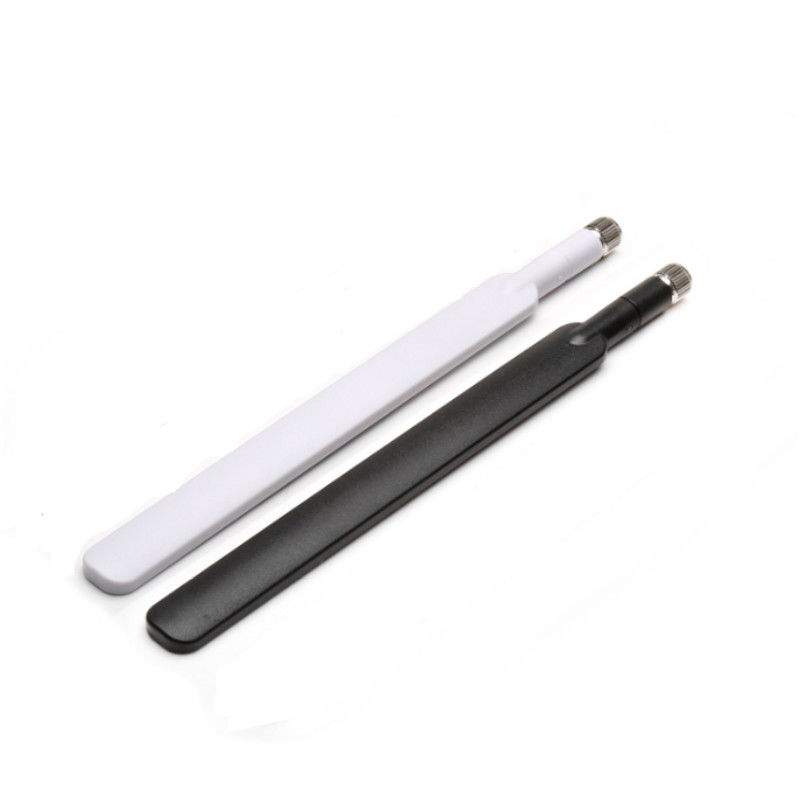

External 3dBi High Gain 2G/3G/4G LTE Router Antenna

Product Description

1. Product Name:

     External 3dBi High Gain 4G LTE Router Antenna

2. Description

    7 bands – 700MHz LTE,Quadband cellular, 3G UMTS / AWS, LTE / WIMAX 2.6GHz Suitable routers and terminals Articulated SMA connector

3. Introduction

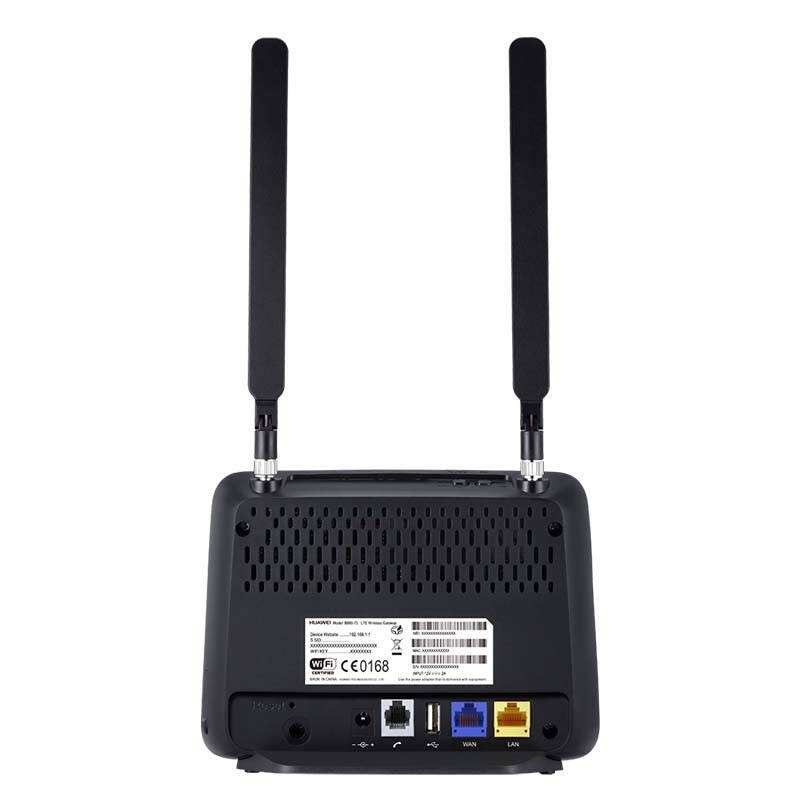

      This 2G 3G 4G LTE terminal mount antenna has been primarily designed for use with 4G LTE modules and devices that require the highest possible efficiency and peak gain to deliver best in class throughput on all major worldwide cellular bands (4G/3G/2G) for access points, terminals and routers.

--3.1 Appliations:

            3G, CDMA, GSM, PCS, LTE
           DAS, BDA Systems
           902MHz – 928MHz ISM
           Remote Monitoring
           SCADA
           Public Safety Communications
           Building Penetration and High Obstruction Deployments

--3.2 Features:

            Highest efficiency for worldwide LTE and Wi-Fi
            LTE / HSPA / GSM / CDMA / DCS /PCS / WCDMA UMTS / GPRS / EDGE / GPS / Wi-Fi
            Dipole Swivel Terminal Antenna

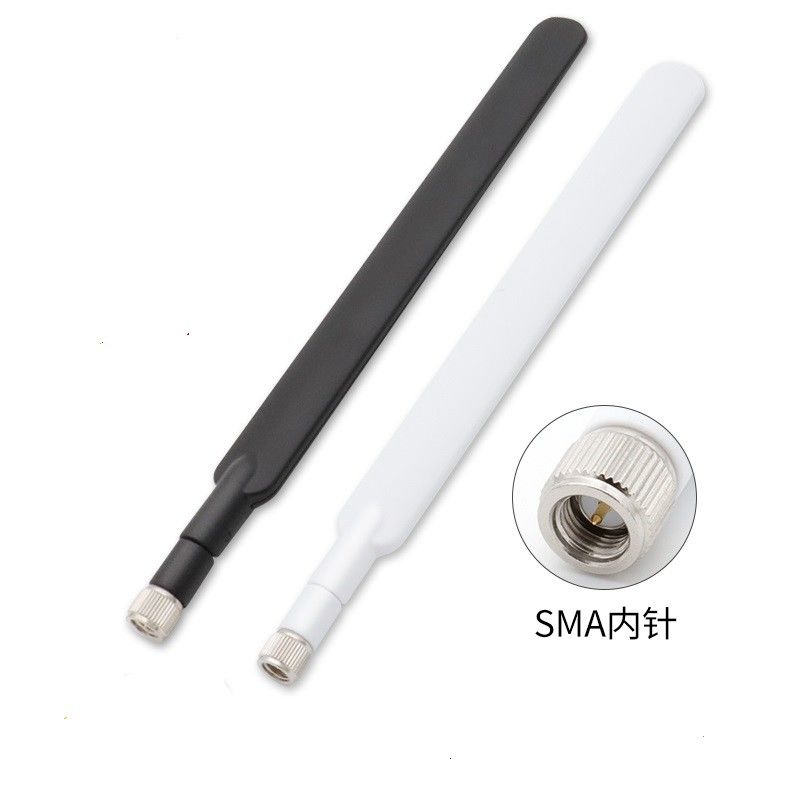

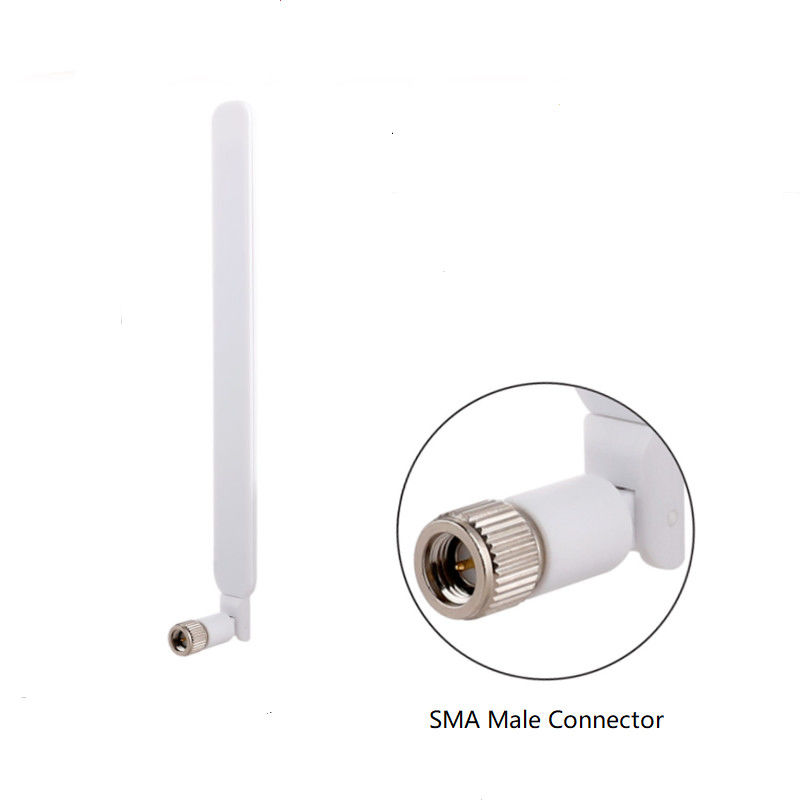

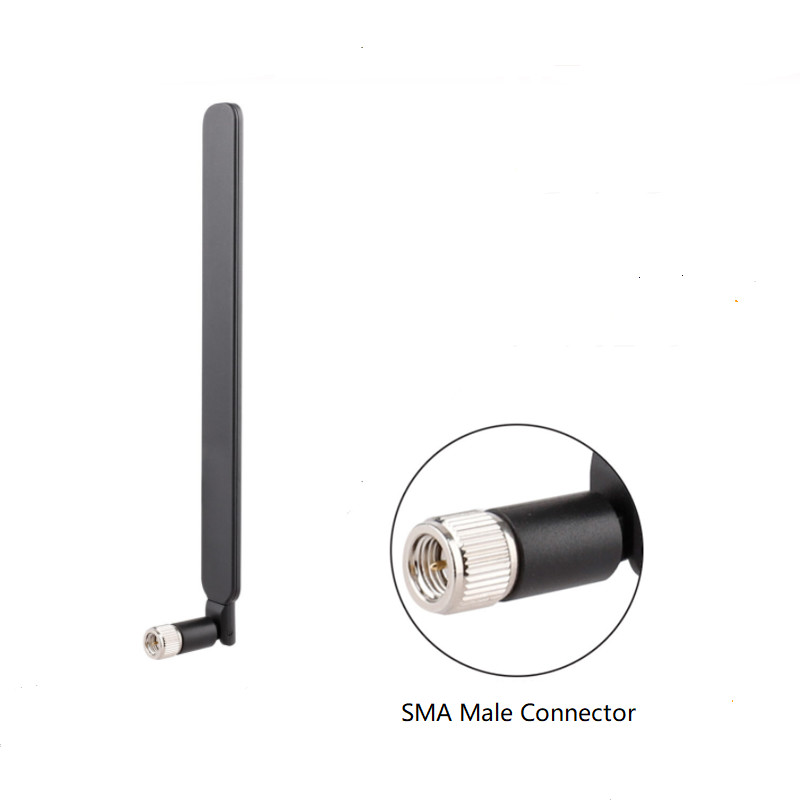

            Hinged 90° termination with SMA(M) Connector
            Dimensions: 190*11mm
            RoHS Compliant

4. Specs

Electrical Properties

Mechanical Properties

5. Antenna Drawing

6. VSWR

7. Radiation Pattern
