External Omni Directional 5G NR Antenna 3500MHz CBRS 5G Terminal Antenna

Product Details:
Place of Origin: China
Brand Name: MS
Certification: RoHS
Model Number: MS-3500JT-001
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: USD$ 1.5 / PCS - USD$ 2 / PCS
Packaging Details: 100 PCS / BAG
Delivery Time: 5-8 days
Payment Terms: D/P
Supply Ability: 10000 PCS

Detail Information

Product Name: External Omni Directional 3500MHz CBRS 5G Terminal Antenna Keywords: 5G Terminal Antenna
Frequency Range: 3300-3800 MHz Gain: 7dBi
VSWR: < 2.0 Impedance: 50 Ohm
Polarization: Linear Antenna Cover: TPEE
Antenna Connector: SMA Male Weight: 20 G
High Light:

CBRS 5G NR Antenna

,

Directional 5G NR Antenna

,

5G Terminal Antenna

Product Description

1. Product Name

    External Omni Directional 3500MHz CBRS 5G Terminal Antenna



2. Description

--2.1 Applications

        Worldwide 5G (Sub-6G)

           Private Cellular Networks--Citizens Broadband Radio Services (CBRS)

           Emerging 5G C-Band Applications

           Internet of Things (IoT) Devices



--2.2 Features

        Performance at 3300-3800MHz

           VSWR < 2.0

           Peak Gain : 7dBi

           Efficiency : 66%

           Hinged Design with Detents for Straight, 45Degree and 90Degree Positioning

           SMA Plug (Male Pin)



3. Introduction

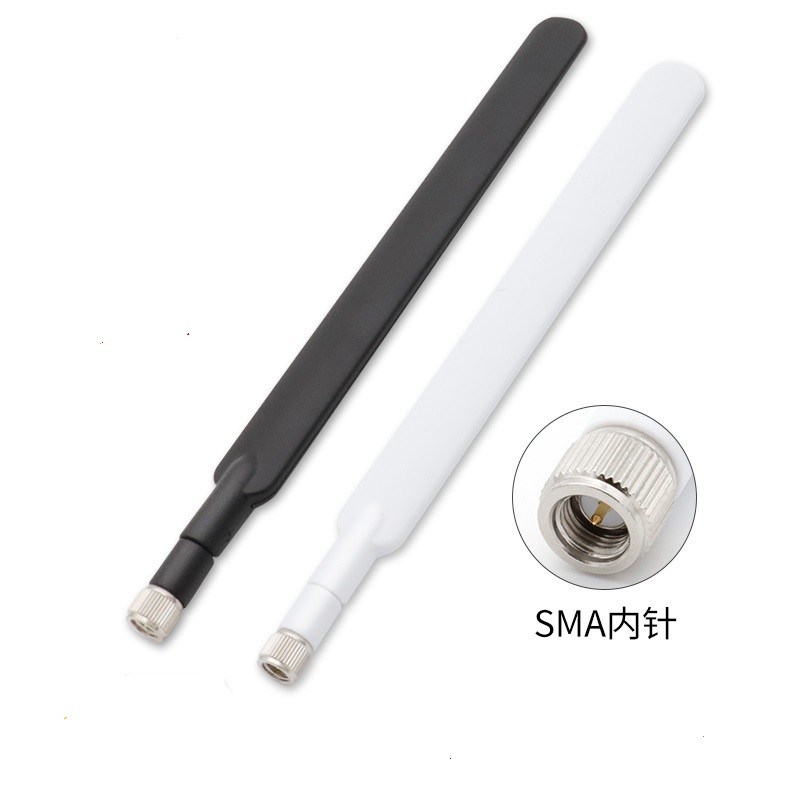

This is a dipole, blade-style antenna for 5G New Radio applications.

The hinged design allows for the antenna to be positioned for optimum performance and reduces the potential for damage from impact compared to a fixed whip design. The antenna attaches with an SMA plug (male pin) connector.



4. Specs

Electrical Properties

1.1 Frequency 3300-3800MHz
1.2 Gain (peak) 7 dBi
1.3 V.S.W.R 2.0 MAX
1.4 Return Loss -10dB Maximum
1.5 Radiation Omni-Directional
1.6 Polarization Linear Vertical
1.7 Power Handling 5W



Mechanical Properties

2.1 Cable RG178
2.2 Antenna Cover TPEE
2.3 Antenna Base Brass
2.4 Operating Temperature -20℃ ~ +65℃
2.5 Storage Temperature -30℃ ~ +75℃
2.6 Color Black / White
2.7 Connector SMA Plug



5. Antenna Drawing

3500MHz 5G Antenna



6. VSWR

5G Omni Directional Antenna



7. Radiation Pattern

5G Terminal Antenna
