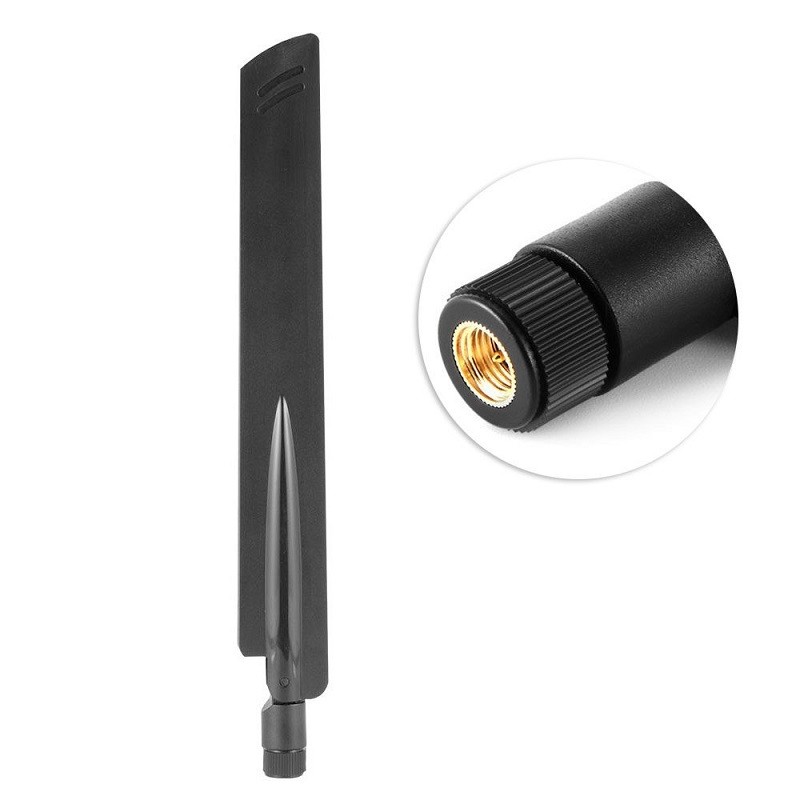

External Ultra Wideband 4G LTE 5G NR Antenna Hinged Rotatable Terminal Mount Antenna

Product Details:
Place of Origin: China
Brand Name: MS
Certification: RoHS
Model Number: MS-5GJT-003
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: USD$ 1.2 / PCS - USD$ 1.5 / PCS
Packaging Details: 100 PCS / BAG
Delivery Time: 5-8 days
Payment Terms: D/P
Supply Ability: 10000 PCS

Detail Information

Product Name: External 5G Rotatable Terminal Antenna Keyword: 5G Terminal Antenna
Frequency Range: 600-6000MHz Gain: 5dBi
VSWR: < 2.5 Polarization: Linear
Impedance: 50 Ohm Connector: SMA Male
Color: White / Black Dimensions: 220*27 Mm
High Light:

External 5G NR Antenna

,

Rotatable 5G NR Antenna

,

ultra wideband antenna

Product Description

1. Product Name

    External 5G LTE Hinged Rotatable Terminal Antenna



2. Description

--2.1 Applications

        Marine (Yachts, Boats, Ferries) Applications

           Enhanced 4G LTE and 5G Reception

           IoT & M2M Applications

           Areas with Poor Data Signal Reception

           Improve Data Transmission Connection Reliability and Stability



--2.2 Features

            High Gain Omni Directional Antenna



            Includes Band 71 (617-698MHz) and 3.5G 5G Bands



            5G LTE 617-960MHz, 1710-2690MHz, 3300-3800MHz, 4200MHz-4700MHz, 5000MHz-5925MHz Supporting



           Hinge Rotatable, 90 Degree

           Connector: SMA Male

           RoHS Compliant



3. Introduction

    This SMA Male 5G NR omni directional antenna is designed by ultra wide band from 600-6000MHz, and it can supported to all types of communication devices or systems.

      Also, it is an ultra wideband, high performance antenna that covers 4G LTE and future 5G operating frequencies with excellent balanced gain across all frequencies. The wideband performance allowsit to operate from 617-6000MHz with a peak gain 5dBi .



4. Specs

Electrical Properties

1.1 Frequency 600- 6000 MHz
1.2 Gain (peak) 5dBi
1.3 V.S.W.R 2.5 MAX
1.4 Return Loss -10dB Maximum
1.5 Radiation Omni-directional
1.6 Polarization Linear Vertical
1.7 Power Handling 5W



Mechanical Properties

2.1 Cable RG178
2.2 Antenna Cover ABS
2.3 Antenna Base PC+PBT
2.4 Operating Temperature -20℃ ~ +65℃
2.5 Storage Temperature -30℃ ~ +75℃
2.6 Color Black
2.7 Connector SMA Plug



5. Antenna Drawing

5G Terminal Antenna



6. VSWR

Return Loss



7. Radiation Pattern

5G Terminal  Antenna Radiation
