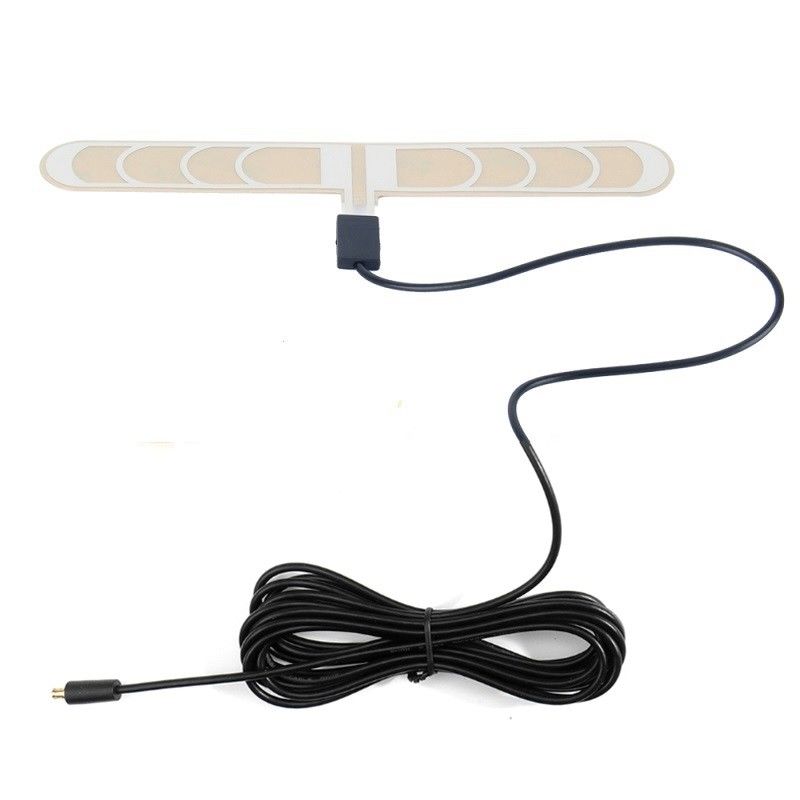

Interior Passive 3dBi High Gain Adhesive AM/FM/DAB Antenna

Product Details:
Place of Origin: China
Brand Name: MS
Certification: RoHS
Model Number: MS-DAB-002
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: USD$ 3 / PCS - USD$ 3.5 / PCS
Packaging Details: 100 PCS / BAG
Delivery Time: 8-15 days
Payment Terms: D/P
Supply Ability: 10000 PCS

Detail Information

Product Name: Passive Adhesive Mount AM FM DAB Antenna Frequency Range: 88-108 / 163-240 MHz
BandWidth: 20 / 77 MHz Impedance: 50 Ohm
Gain: 3 DBi VSWR: < 2.0
Max Input Power: 2 W Cable Type: RG 174
Connector: SMA / SMB / MCX Mounting: 3M Sticker
High Light:

3dBi FM DAB Antenna


AM FM DAB Antenna


Interior high gain wifi antenna

Product Description

1. Product Name

      Interior Passive 3dBi High Gain Adhesive AM/FM/DAB Antenna


2. Description

--2.1 Applications:

           FM Units--88-108 MHz

           DAB Units-- 163-240 MHz

           DAB+  Units-- 1452-1492 MHz (3m Cable)


--2.2 Features:

           DAB / DAB+ Antenna for Indoor Use

           Compatible with most DAB / DAB+ Units in Car

           Cable Length--3m

           SMA / SMB / MCX (Optional)


3. Introduction

     This universal DAB aerial is a quick and easy windscreen patch aerial to enable reception of DAB radio signals (for use with in car DAB radios and tuners such as Sony, Pioneer, JVC, and Kenwood etc.). This universal DAB antenna is designed for vehicle window mounting. The aerial sticks to the inside window glass surface . This DAB aerial is suitable for all type of car DAB radio and tuner and terminates in an SMB (right-angled push-on type connector), please ensure your radio or DAB tuner has this type of connector.


4. Specs

Electrical Properties

1.1 Frequency 88-108 / 163-240 MHz
1.2 Gain (peak) 2 dBi
1.3 V.S.W.R 2.5 MAX
1.4 Return Loss -5dB Maximum
1.5 Radiation Omni-directional
1.6 Polarization Linear Vertical
1.7 Power Handling 2 W


Mechanical Properties

2.1 Cable RG174 Coaxial Cable
2.2 Antenna Cover PC
2.3 Film Material  PET
2.4 Operating Temperature -20℃ ~ +65℃
2.5 Storage Temperature -30℃ ~ +75℃
2.6 Color Black
2.7 Connector MCX / SMA / SMB



5. Return Loss

Interior Passive 3dBi High Gain Adhesive AM/FM/DAB Antenna 0

Interior Passive 3dBi High Gain Adhesive AM/FM/DAB Antenna 1
