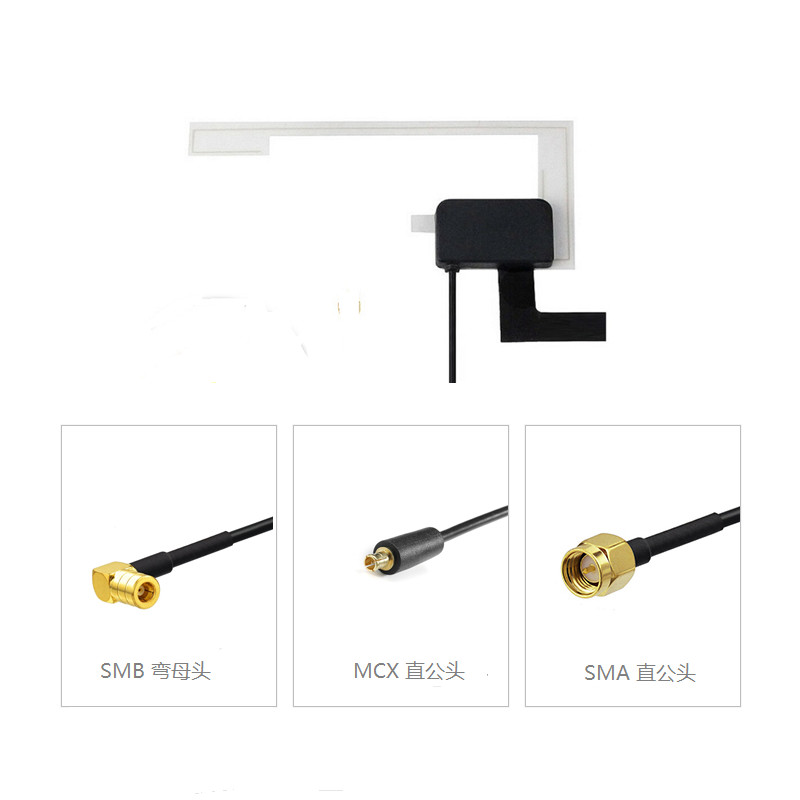

Car Active Portable Stereo Radio FM DAB Antenna

Product Details:
Place of Origin: China
Brand Name: MS
Certification: RoHS
Model Number: MS-DAB-001
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: USD$ 2 / PCS - USD$ 2.5 / PCS
Packaging Details: 1 PCS / BAG
Delivery Time: 7-10 days
Payment Terms: D/P
Supply Ability: 10000 PCS / Month

Detail Information

Product Name: Car Stereo Radio DAB Antenna Frequency Range: 163-240 / 1452-1492 MHz
Gain: 15 DBi VSWR: < 2.5
Input Voltage: 5-12 V Connector: SMA / MCX / SMB / FAKRA
Working Current: 26 MA Weight: 80 G
High Light:

Portable FM DAB Antenna

,

15 dBi FM DAB Antenna

,

Active Stereo Radio Antenna

Product Description

1. Product Name:

    Car Active Portable Stereo Radio DAB / DAB+ Antenna



2. Description

      This active DAB+ antenna is designed to receive digital broadcasting digital radio. The integrated amplifier improves the reception signal.

       This DAB DAB+ active patch antenna is an ABS IP65 patch antenna with a self-adhesive fixing strip designed to achieve excellent placement strength on any non-metallic surface. A superbly engineered integrated dipole amplified PCB provides excellent DAB performance at 150MHz – 240MHz. It is supplied with 3m of low loss RG174 cable and an SMB Female Right Angle or SMA connector.



3. Introduction

-- 3.1 Applications:

    Car Navigation Devices

    Car Radio

    Active Portable Stereo Devices



-- 3.2 Features:

   15dBi High Gain

    Active Input Voltage 5-12V

    SMA / MCX / SMB / FAKRA Connector Optional

    RoHS Compliant



4. Specs

Electrical Properties

1.1 Frequency 163-240 / 1452-1492 MHz
1.2 Gain (peak) 15 dBi
1.3 V.S.W.R 2.5 MAX
1.4 Return Loss -5dB Maximum
1.5 Radiation Omni-Directional
1.6 Polarization Linear
1.7 Power Handling 1W







Mechanical Properties

2.1 Cable RG-174 Coaxial Cable
2.2 Antenna Cover TPE
2.3 Antenna Base 3M Sticker
2.4 Operating Temperature -20℃ ~ +65℃
2.5 Storage Temperature -30℃ ~ +75℃
2.6 Color Black

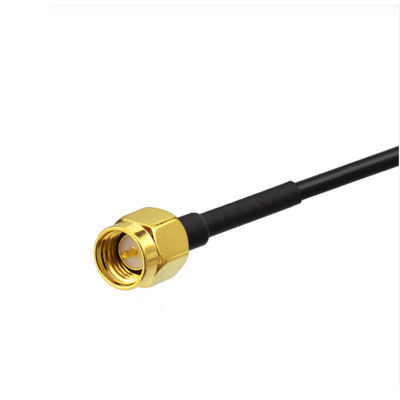

2.7 Connector SMA / MCX / SMB / FAKRA



5. Antenna Drawing

Car Active Portable Stereo Radio FM DAB Antenna 0



6. VSWR For Passive Test

Car Active Portable Stereo Radio FM DAB Antenna 1



7. Package

Car Active Portable Stereo Radio FM DAB Antenna 2
