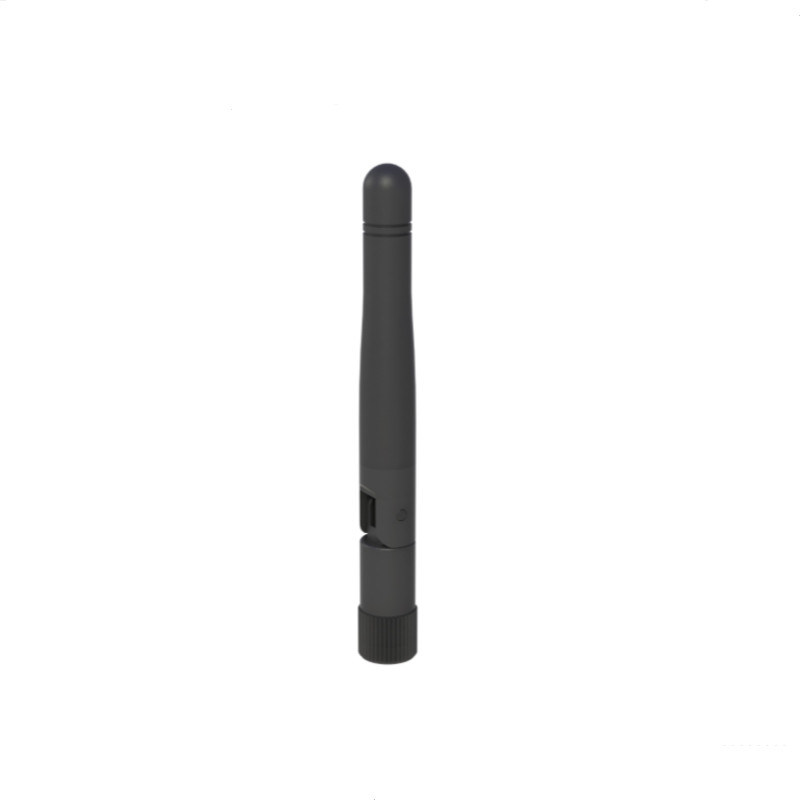

China UHF VHF TV Antenna manufacturer

Omni Directional WIFI Bluetooth Antenna

Product Details:
Place of Origin: China
Brand Name: MS
Certification: RoHS
Model Number: MS-2400JT-010
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD$ 0.3 / PCS - USD$ 0.35 / PCS
Packaging Details: 50 PCS / BAG
Delivery Time: 5-8 days
Payment Terms: D/P
Supply Ability: 100000 PCS / Month

Detail Information

Product Name: 2.4GHz WIFI Antenna Type: External Antenna
Frequency Range: 2400-2483MHz Gain: 2dBi
VSWR: < 2.0 Impedance: 50 Ohm
Connector: SMA Male Or RP SMA Male Color: Black Or White
Length: 84 Mm Weight: 8 G
High Light:

Omni Directional WIFI Bluetooth Antenna


2dBi WIFI Bluetooth Antenna


2.4GHz WIFI Bluetooth Antenna

Product Description


1. Product Name :

      External Wireless LAN 2dBi High Gain Screw Mount 2.4GHz WIFI Antenna


2. Description

      SMA Male or RP SMA Male


      TPE Housing

      Length 84 mm

      RoHS Compliant


3. Introduction

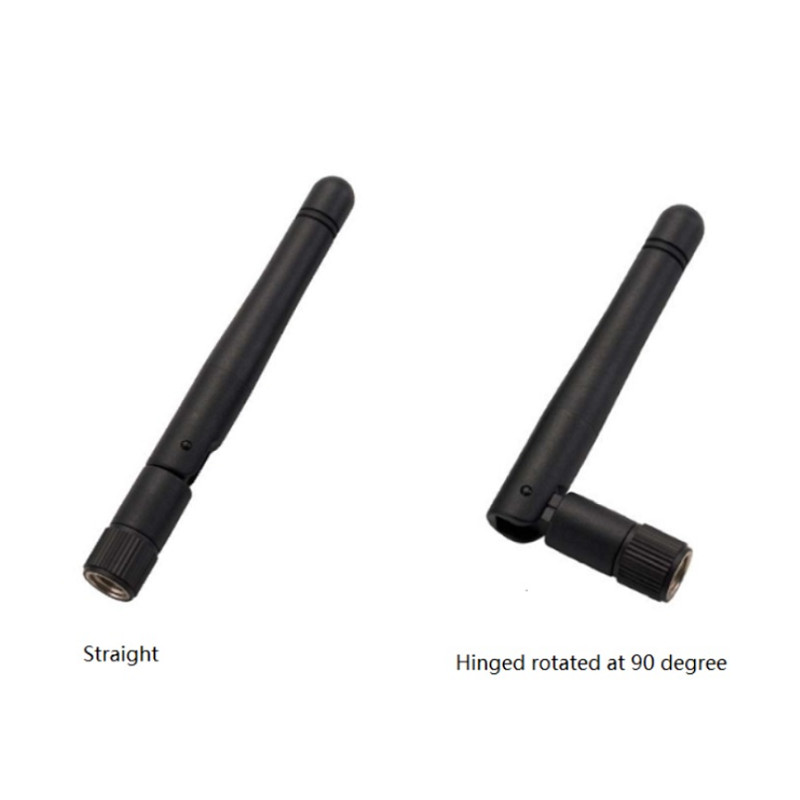

    This 2.4GHz dipole SMA plug mount antenna is ideal for 2.4 GHz wireless applications such as Bluetooth and Wireless LAN. At only 84mm in length omni-directional 1.8dBi gain across all bands ensures constant reception and transmission. The antenna structure is designed for robust handling and the housing is made with TPE giving superior environmental reliability and a quality finish. The antenna can be rotated 90 degrees on the base hinge for ease of placement. Connector mount is fully customizable.


--3.1  Applications:

Smart Home

Bluetooth, Zigbee and Wireless LANs

Gateways / Routers



--3.2  Features:

2.4GHz Band Operation

2dBi Gain High

Hinged RP-SMA (M) or SMA(M) Connector

Height: 84mm

Diameter: 11mm

RoHS Compliant


4. Specs


Electrical Properties

1.1 Frequency 2.4 GHz ~ 2.5 GHz
1.2 Gain (peak) 2dBi
1.3 V.S.W.R 2MAX
1.4 Return Loss -10dB Maximum
1.5 Radiation Omni-directional
1.6 Polarization Linear
1.7 Power Handling 1W




Mechanical Properties

2.1 Cable RG-178 Coaxial Cable
2.2 Antenna Cover TPE
2.3 Antenna Base PC&PBT
2.4 Operating Temperature -20℃ ~ +65℃
2.5 Storage Temperature -30℃ ~ +75℃
2.6 Color Black or White
2.7 Connector RP-SMA Plug or SMA Plug



5. Antenna Drawing

Omni Directional WIFI Bluetooth Antenna 0



Omni Directional WIFI Bluetooth Antenna 1


7. Radiation Pattern

Omni Directional WIFI Bluetooth Antenna 2


8. Package

25 PCS / BAG

Omni Directional WIFI Bluetooth Antenna 3
