External Magnetic Mount MIMO Antenna GPS GLONASS 4g Antenna Omni Directional

Product Details:
Place of Origin: China
Brand Name: MS
Certification: RoHS
Model Number: MS-GPS-GSM-001
Payment & Shipping Terms:
Minimum Order Quantity: 10 PCS
Price: USD$ 3 / PCS - USD$ 3.2 / PCS
Packaging Details: 1 PCS / BAG
Delivery Time: 5-8 days
Payment Terms: D/P
Supply Ability: 10000 PCS

Detail Information

Product Name: Magnetic Mount GPS/GLONASS 4G LTE Antenna Keyword: GPS / 4G LTE Combination Antenna
Frequency Range: 1575.42 / 1602 / 700-2700 MHz Gain: 28dBi (GPS/GLONASS) / 1.5dBi
VSWR: < 2.0 Impedance: 50 Ohm
Polarization: RHCP / Linear Radiation Pattern: Omni-Directional
Cable Type: RG 174 Connector: SMA / TNC / FAKRA
High Light:

Magnetic MIMO Antenna

,

External MIMO Antenna

,

4g Antenna Omni Directional

Product Description

1. Product Name

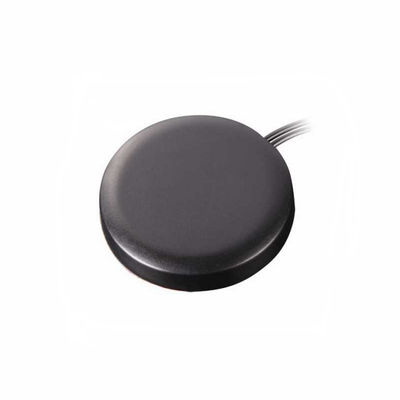

    External Magnetic Mount GPS/GLONASS & 4G LTE/Cellular Antenna



2. Description

--2.1 Applications

        For GPS / GLONASS:

                                           Automatic Vehicle Tracking

                                           Cargo Container and Trailer Tracking

                                           Fleet Tracking Management System



           For 4G LTE:

                                           LPWAN, LTE, NB-IoT, M2M

                                           Mobile Applications

                                           Commercial Vehicles

                                           Industrial Environments

                                           Vandal Prone Environments



--2.2 Features

        1*4G LTE Antenna

           1* Active GPS/GLONASS (L1)

           Magnetic Mount (Adhesive Mount Optional)

           IP65 Rated

           Dimensions: 80 * 14.5 mm

           3m RG174 Coaxial Cable

           Customized Cable and Connector Available



3. Introduction

    This antenna is a combination low profile high performance GPS/GLONASS and 4G LTE Cellular (GSM / GPRS / CDMA / PCS / DCS / WCDMA / UMTS) antenna to simplify AVL or Fleet management antenna systems all over the world

     It comes with magnetic mount as standard. We can guarantee that it will come up with your system and your environments.



4. Specs

Electrical Properties

1.1 Frequency 1575.42 / 1602 / 700-2700 MHz
1.2 Gain (peak) 28dBi  / 1.5 dBi
1.3 V.S.W.R 2.0 MAX
1.4 Return Loss -10dB Maximum
1.5 Radiation Omni-Directional
1.6 Polarization RHCP / Linear
1.7 Power Handling 1W



Mechanical Properties

2.1 Cable RG 174
2.2 Antenna Cover ABS
2.3 Antenna Base Magnet
2.4 Operating Temperature -20℃ ~ +65℃
2.5 Storage Temperature -30℃ ~ +75℃
2.6 Color Black
2.7 Connector SMA / TNC / FAKRA







5. Antenna Drawing

External Magnetic Mount MIMO Antenna GPS GLONASS 4g Antenna Omni Directional 0



6. VSWR

External Magnetic Mount MIMO Antenna GPS GLONASS 4g Antenna Omni Directional 1

External Magnetic Mount MIMO Antenna GPS GLONASS 4g Antenna Omni Directional 2



7. Radiation Pattern

External Magnetic Mount MIMO Antenna GPS GLONASS 4g Antenna Omni Directional 3

External Magnetic Mount MIMO Antenna GPS GLONASS 4g Antenna Omni Directional 4
