External 32dBi hybrid GPS GLONASS Antenna High Gain Magnetic Mount Active

Product Details:
Place of Origin: China
Brand Name: MS
Certification: RoHS
Model Number: MS-GPS-003
Payment & Shipping Terms:
Minimum Order Quantity: 10 PCS
Price: USD$ 2 / PCS - USD$ 2.2 / PCS
Packaging Details: 100 PCS / BAG
Delivery Time: 5-8 days
Payment Terms: D/P
Supply Ability: 10000 PCS

Detail Information

Product Name: External Magnetic Mount Active GPS GLONASS Antenna Keyword: GPS GLONASS Antenna
Frequency Range: 1575-1609 MHz Gain: 32dBi (Typical)
VSWR: < 2.0 (Max) Impedance: 50 Ω
Polarization: RHCP Inner Type: Dielectric Ceramics
DC Power Input: 3- 5 V DC Current: 8.5mA @5.0V (Typical)
Cable Type: RG174 Coaxial Cable Connector Type: SMA Male
High Light:

High Gain \GPS GLONASS Antenna

,

Magnetic GPS GLONASS Antenna

,

32dbi hybrid antenna

Product Description

1. Product Name

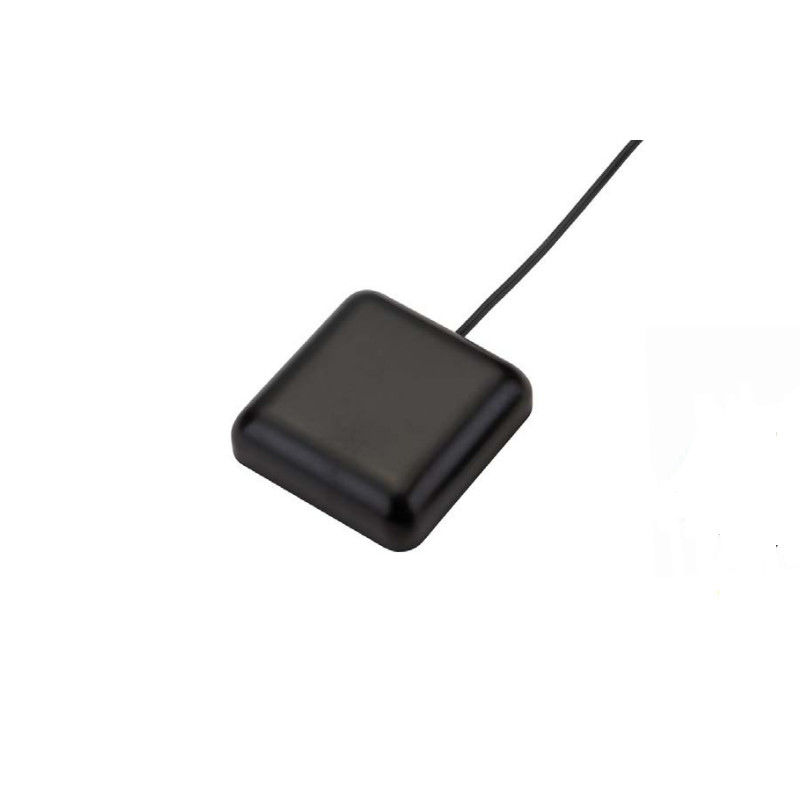

    External 32dBi High Gain Magnetic Mount Active GPS/GLONASS Antenna



2. Description

--2.1 Applications

        Telematics

           Fleet Management

           Navigation

           Tracking



--2.2 Features

        Compact Size

           High Gain and Low Noise Design

           Low Current Consumption

           1575-1609MHz

           Customized Cables and Connectors



3. Introduction

    This compact high gain active antenna is designed for all type of applications which requires high positioning accuracy by combining GPS and GLONASS signals. High Gain wide band patch antenna on a large integral ground delivers the best performance.



4. Specs

Electrical Properties

1.1 Frequency 1575-1609 MHz
1.2 Gain (peak) 32 dBi
1.3 V.S.W.R 2.0 MAX
1.4 Return Loss -10dB Maximum
1.5 Radiation Omni-Directional
1.6 Polarization RHCP
1.7 DC Power Input 3 - 5 V



Mechanical Properties

2.1 Cable RG174
2.2 Antenna Cover ABS
2.3 Antenna Base Magnet
2.4 Operating Temperature -20℃ ~ +65℃
2.5 Storage Temperature -30℃ ~ +75℃
2.6 Color Black
2.7 Connector SMA Plug





5. Antenna Drawing

External 32dBi hybrid GPS GLONASS Antenna High Gain Magnetic Mount Active 0



6. VSWR on Passive Patch

External 32dBi hybrid GPS GLONASS Antenna High Gain Magnetic Mount Active 1



7. Radiation Pattern

External 32dBi hybrid GPS GLONASS Antenna High Gain Magnetic Mount Active 2
