External 5.8GHz WIFI 5dBi Hinged Linear Dipole Antenna Terminal Mount

Product Details:
Place of Origin: China
Brand Name: MS
Certification: RoHS
Model Number: MS-58JT-005
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: USD$ 1 / PCS - USD$ 1.2 / PCS
Packaging Details: 100 PCS / BAG
Delivery Time: 5-8 days
Payment Terms: D/P
Supply Ability: 100000 PCS

Detail Information

Product Name: 5.8GHz Terminal Mount Dipole Antenna Frequency Range: 5150-5850 MHz
BeamWidth: 700 MHz Impedance: 50 Ohm
Polarization: Linear Radiation Pattern: Omni
Max Input Power: 2 W Height: 198 Mm
Case: TPE Connector: RP SMA Male / SMA Male
High Light:

External Linear Dipole Antenna

,

5.8GHz Linear Dipole Antenna

,

WIFI 5dBi Antenna

Product Description

1. Product Name

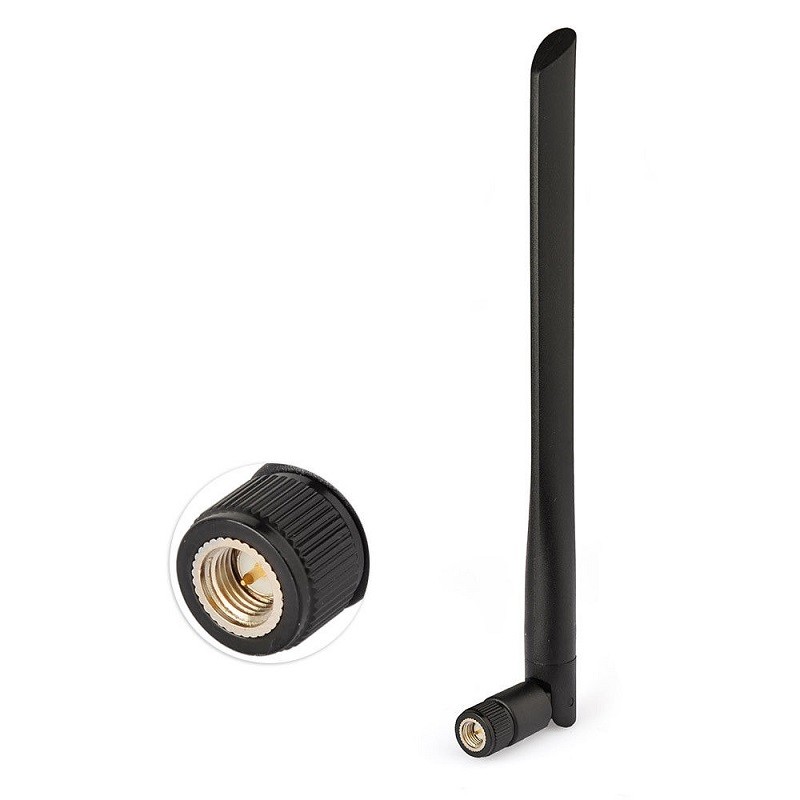

    External 5.8GHz WIFI 5dBi Terminal Mount Hinged Dipole Antenna



2. Description

--2.1 Applications:

        Smart Home

           Hotspots

           Wireless Videos

           Gateways / Routers

           Bluetooth

           Wireless LANs



--2.2 Features:

        5.8GHz Band Operation

        5dBi High Gain

        Hinged SMA Connector

        Height: 198mm

        Diameter : 13mm

        RoHS Compliant



3. Introduction

      This is a 5.8GHz Wi-Fi terminal mount 5dBi dipole antenna. At just 198mm in height and 13mm in diameter, the robust TPEE enclosure can be mounted straight or at right angle to the device with its hinged RP-SMA(M) connector. It is ideal for applications such as Bluetooth, BLE, ZigBee and Wireless LAN. This antenna designed for superior performance and reliability, has an omnidirectional radiation pattern and extremely high efficiency and gain on the 5.8GHz band



4. Specs

Electrical Properties

1.1 Frequency 5150-5850 MHz
1.2 Gain (peak) 5 dBi
1.3 V.S.W.R 2.0 MAX
1.4 Return Loss -10dB Maximum
1.5 Radiation Omni-directional
1.6 Polarization Linear Vertical
1.7 Power Handling 2W



Mechanical Properties

2.1 Cable RG178
2.2 Antenna Cover TPE
2.3 Antenna Base PC+PBT
2.4 Operating Temperature -20℃ ~ +65℃
2.5 Storage Temperature -30℃ ~ +75℃
2.6 Color Black
2.7 Connector RP-SMA Plug / SMA Plug



5. Antenna Drawing

External 5.8GHz WIFI 5dBi Hinged Linear Dipole Antenna Terminal Mount 0



6. VSWR

External 5.8GHz WIFI 5dBi Hinged Linear Dipole Antenna Terminal Mount 1



7. Radiation Pattern

External 5.8GHz WIFI 5dBi Hinged Linear Dipole Antenna Terminal Mount 2
