Detail Information |
|||
| Product Name: | 2.4GHz 5dBi Connector Mount Antenna | Frequency Range: | 2400-2483 MHz |
|---|---|---|---|
| Gain: | 5 DBi | VSWR: | < 2.0 |
| Impedance: | 50 Ohm | Radiation: | Omni-Directional |
| Polarization: | Linear | Cable: | RG178 |
| Antenna Cover: | TPE | Antenna Base: | PC+PBT |
| Color: | Black | Connector: | SMA Male / RP SMA Male |
| High Light: | Hinged WIFI Bluetooth Antenna,5dBi WIFI Bluetooth Antenna,50 Ohm Antenna High Gain |
||
Product Description
1. Product Name:

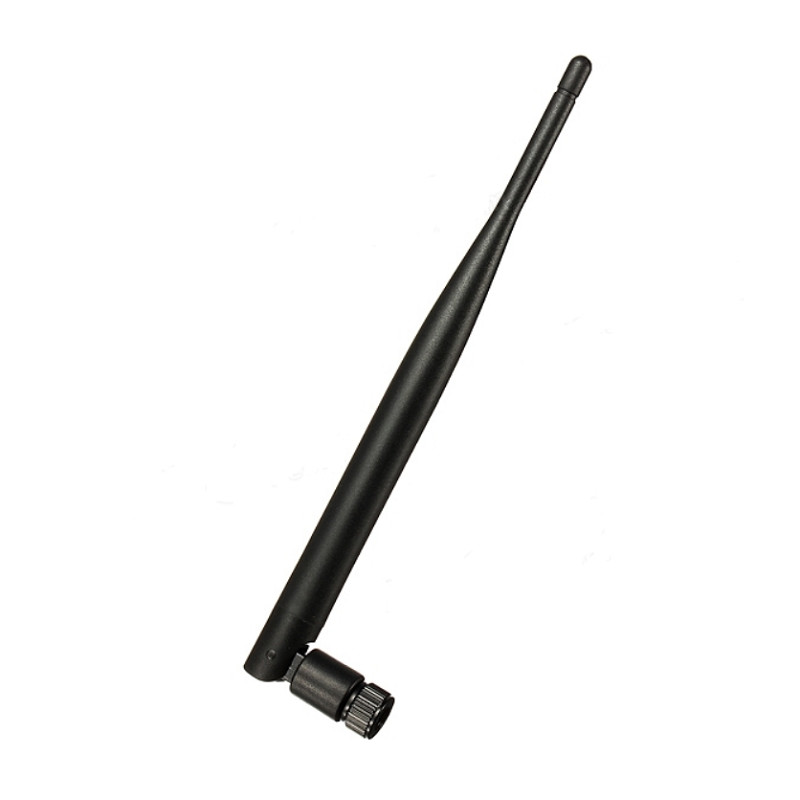

External 2.4GHz 5dBi High Gain Hinged Swivel Dipole Antenna
2. Description
--2.1 Appliations:
Smart Home
Gateways/Routers
Connected Agriculture
--2.2 Features:
2.4GHz Band Operation
5dBi Gain
High Efficiency up to 75%
Hinged RP-SMA (M) Connector
Height: 195mm
Diameter: 13mm
RoHS Compliant
3. Introduction
This 2.4GHz dipole RP-SMA plug mount antenna is ideal for 2.4 GHz wireless applications such as Bluetooth and Wireless LAN. At 195mm in length omni-directional 4.8dBi gain across all bands ensures constant reception and transmission. The antenna structure is designed for robust handling and the housing is made with TPE giving superior environmental reliability and a quality finish. The antenna can be rotated 90 degrees on the base hinge for ease of placement. Connector mount is fully customizable.
4. Specs
Electrical Properties
| 1.1 | Frequency | 2.4 GHz ~ 2.5 GHz |
| 1.2 | Gain (peak) | 4.8dBi |
| 1.3 | V.S.W.R | 2 MAX |
| 1.4 | Return Loss | -10dB Maximum |
| 1.5 | Radiation | Omni-directional |
| 1.6 | Polarization | Linear Vertical |
| 1.7 | Power Handling | 5W |
Mechanical Properties
| 2.1 | Cable | RG-178 Coaxial Cable |
| 2.2 | Antenna Cover | TPE |
| 2.3 | Antenna Base | PC&PBT |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black |
| 2.7 | Connector | RP-SMA Plug / SMA Plug |
5. Antenna Drawing
6. VSWR
7. Radiation Pattern
