Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | MS |
| Certification: | RoHS |
| Model Number: | MS-5G-001 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 100 PCS |
| Price: | USD$ 1.2 / PCS - USD$ 1.5 / PCS |
| Packaging Details: | 1 PCS / BAG |
| Delivery Time: | 10-13days |
| Payment Terms: | D/P |
| Supply Ability: | 10000 PCS / Month |
|
Detail Information |
|||
| Product Name: | High Performance 5G Antenna | Frequency Range: | 600- 6000 MHz |
|---|---|---|---|
| Gain: | 3 DBi | VSWR: | < 3.0 |
| Impedance: | 50 Ohm | Polarization: | Linear |
| Connector: | SMA Plug | Size: | 171*38*13.8 Mm |
| High Light: | 3 dBi 5G NR Antenna,High Performance 5G NR Antenna,50 Ohm Ultra Wide Band Antenna |
||

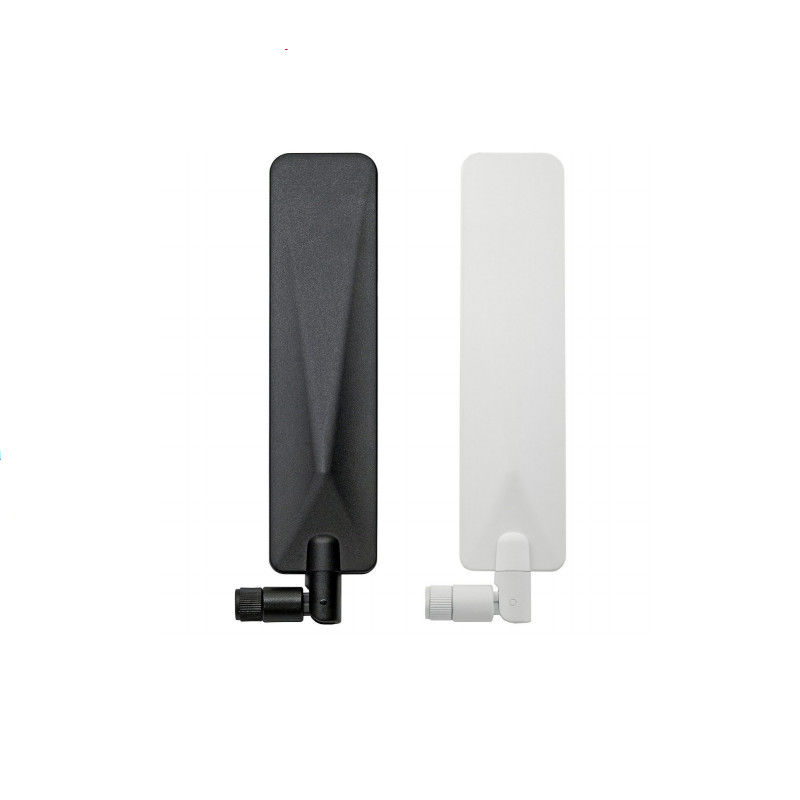

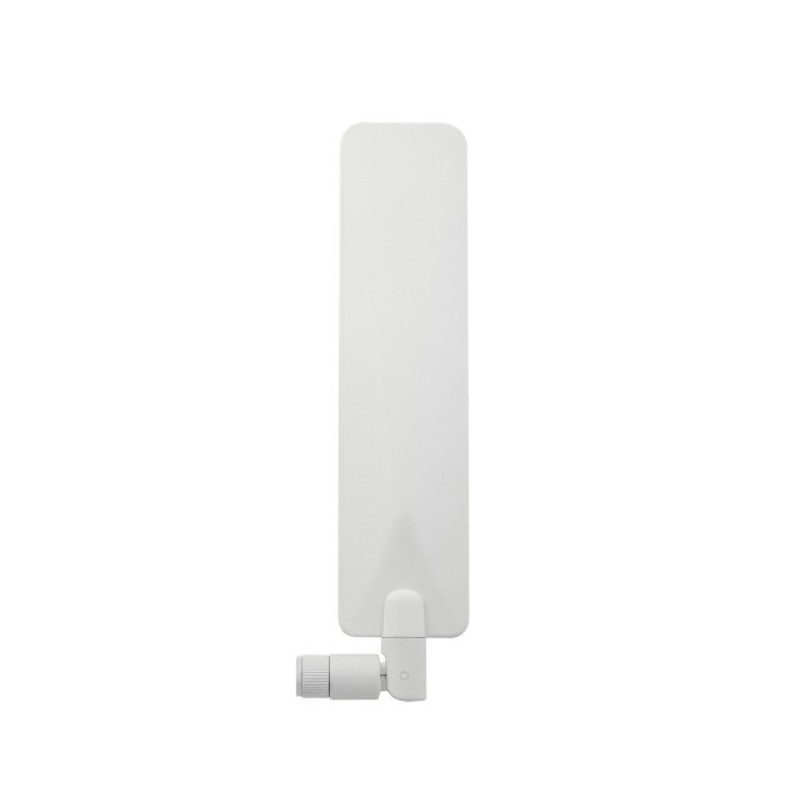

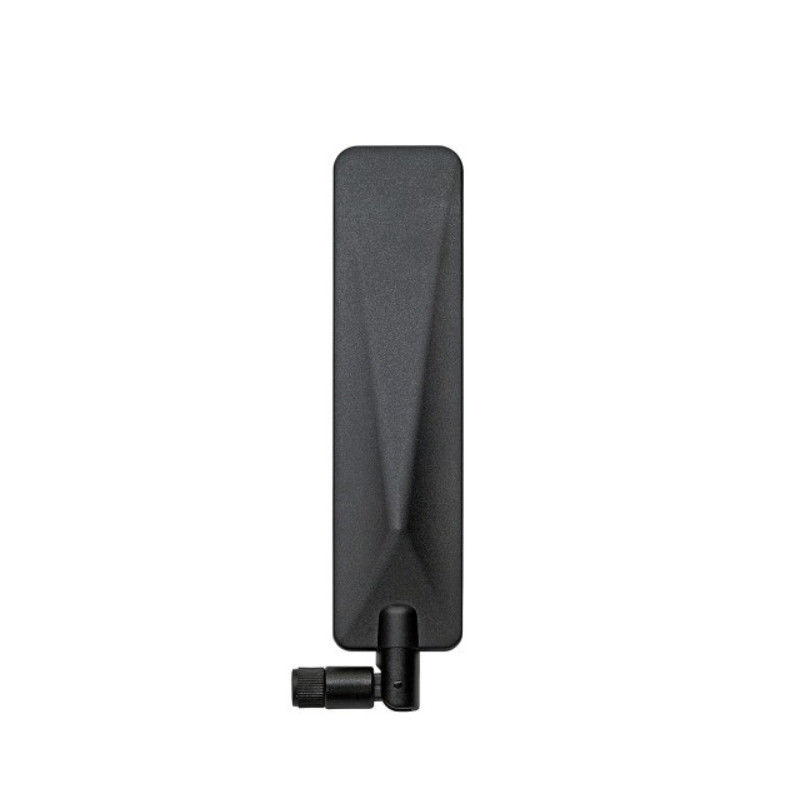

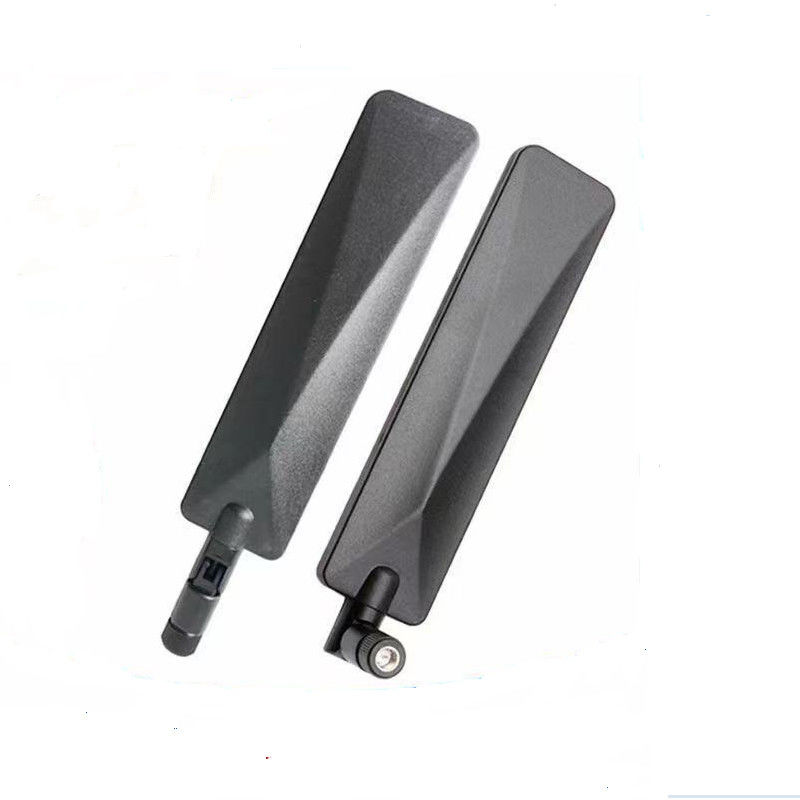

Product Description
1. Product Name:
External High Performance Ultra Wide Band Connector Mount 5G NR Antenna
2. Description
5G Flat Panel antenna
600-60000Mhz

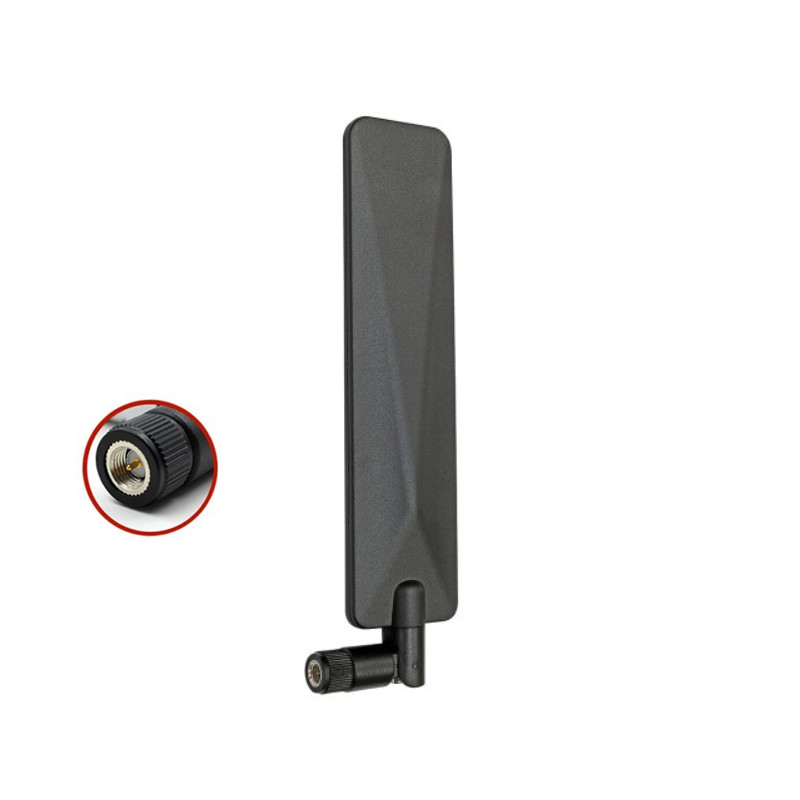

90deg Hinged SMA Male Connector
A rugged and flexible 1/4 length wave monopole antenna. The omni directional antenna is on 5G and has a 90° degree SMA connector.
3. Introduction
It is widely used for wireless transmitter&wireless receiver .such as AP,WLAN ,WIFI ROUTER ,WIFI ADAPTER.
--3.1 Applications:
5GNR Bands
4G/LTE (699-960/1710-2690 MHz)
3G Cellular Bands
2G Cellular Bands
CDMA Cellular Bands
GALILEO E1 (1575.42 MHz)
GPS (1575.42 MHz)
GLONASS (1592 - 1610 MHz)
--3.2 Features:
- 617-960 MHz
- 1427-2690 MHz
- 3300-5000 MHz
- 5150-5925 MHz
Connector Mount
Ultra Wide band Antenna
High Performance
Ground Plane Independent
Hinged Connector
Dimensions 171 × 38 × 13.8 mm
4. Specs
Electrical Properties
| 1.1 | Frequency | 600-6000 MHz |
| 1.2 | Gain (peak) | 3.3 dBi |
| 1.3 | V.S.W.R | 3 MAX |
| 1.4 | Return Loss | -10dB Maximum |
| 1.5 | Radiation | Omni-directional |
| 1.6 | Polarization | Linear |
| 1.7 | Power Handling | 2 W |
Mechanical Properties
| 2.1 | Cable | RG-178 Coaxial Cable |
| 2.2 | Antenna Cover | TPE |
| 2.3 | Antenna Base | PC&PBT |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black or White |
| 2.7 | Connector | RP-SMA Plug or SMA Plug |
5. Antenna Drawing
6. VSWR
7. Radiation Pattern
8. Advantages of 5G Antenna
-8.1 Compact Size
-8.2 Wide Bandwidth
-8.3 Omni-Directional Radiation Pattern
-8.4 Durability
-8.5 Cost-Effective
-8.6 Low Profile
